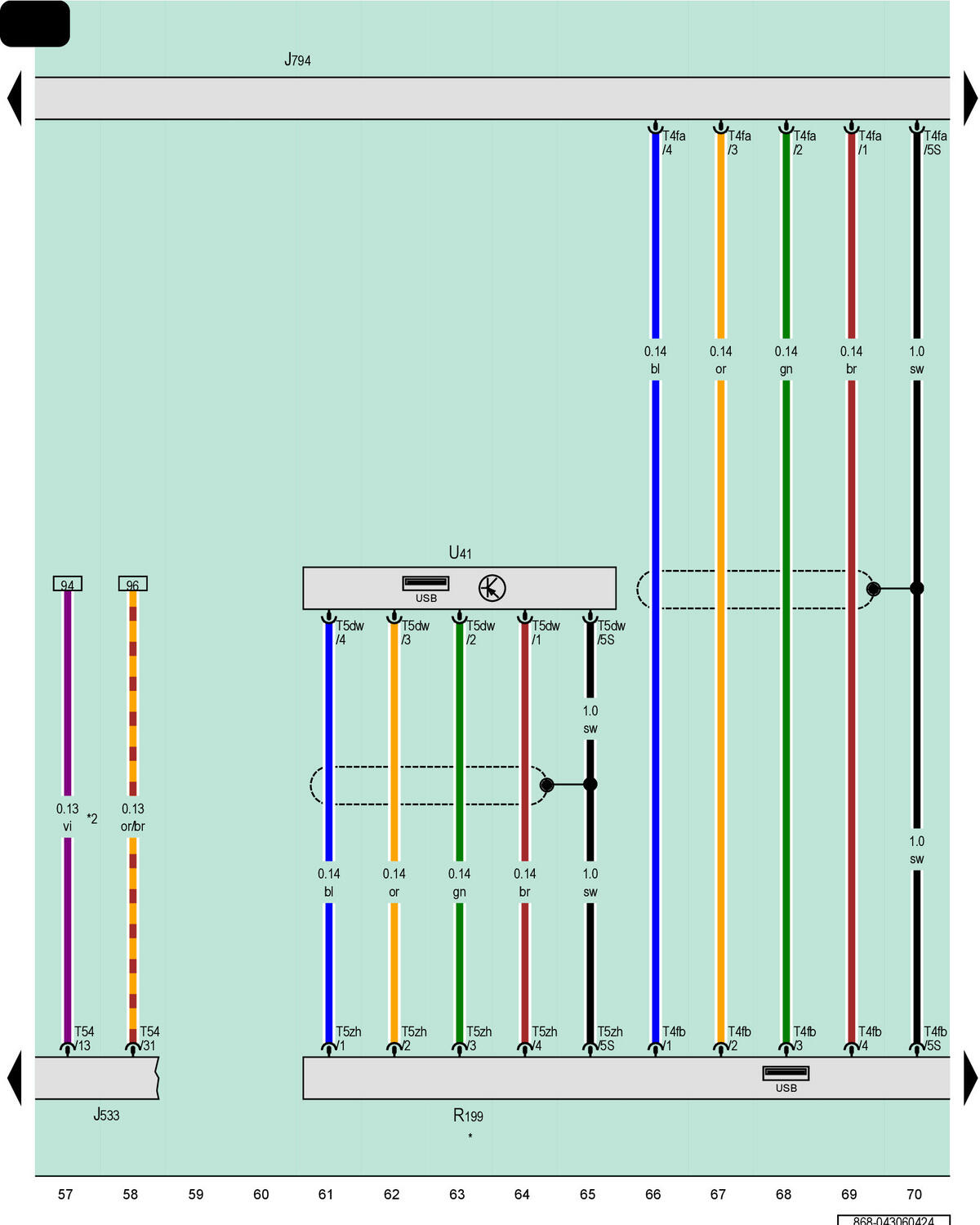

Data Bus On Board Diagnostic Interface, Information Electronics Control Module 1, External Audio Source Connection, USB Connection 1

Courtesy of AUDI OF AMERICA, LLC

J533

Data Bus on Board Diagnostic Interface

J794

Information Electronics Control Module 1

R199

External Audio Source Connection

T4fa

4-Pin Connector, Yellow

T4fb

4-Pin Connector, Green

T5dw

5-Pin Connector, Green

T5zh

5-Pin Connector, Purple

T54

54-Pin Connector, Black

U41

USB Connection 1

*

Depending on Equipment

*2

Different Wire Color Possible
