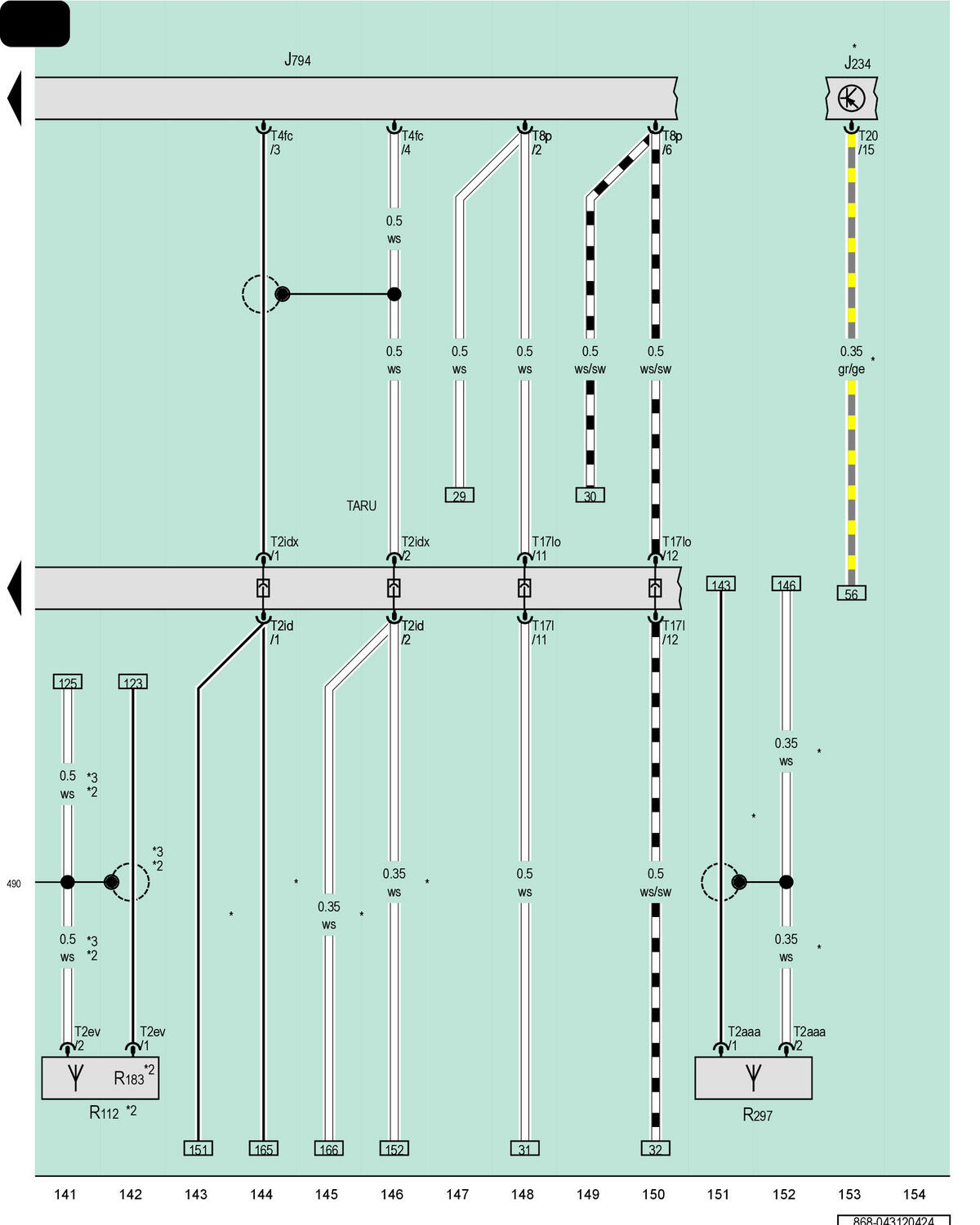

Airbag Control Module, Information Electronics Control Module 1, Antenna Amplifier 3, Digital Radio Antenna

Courtesy of AUDI OF AMERICA, LLC

J234

Airbag Control Module

J794

Information Electronics Control Module 1

R112

Antenna Amplifier 3, In the Right Side Window, Rear

R183

Digital Radio Antenna

R297

LTE Antenna 1, Behind the Left Rear Bumper

T2aaa

2-Pin Connector, Purple

T2ev

2-Pin Connector, Black

T2id

2-Pin Connector, Purple

T2idx

2-Pin Connector, Purple

T4fc

4-Pin Connector, Purple

T8p

8-Pin Connector, Brown

T17l

17-Pin Connector, Green

T17lo

17-Pin Connector, Green

T20

20-Pin Connector, Yellow

TARU

Coupling Point on Right A-Pillar, Bottom

*

Depending on Equipment

*2

Avant

*3

For Vehicles with Digital Radio
