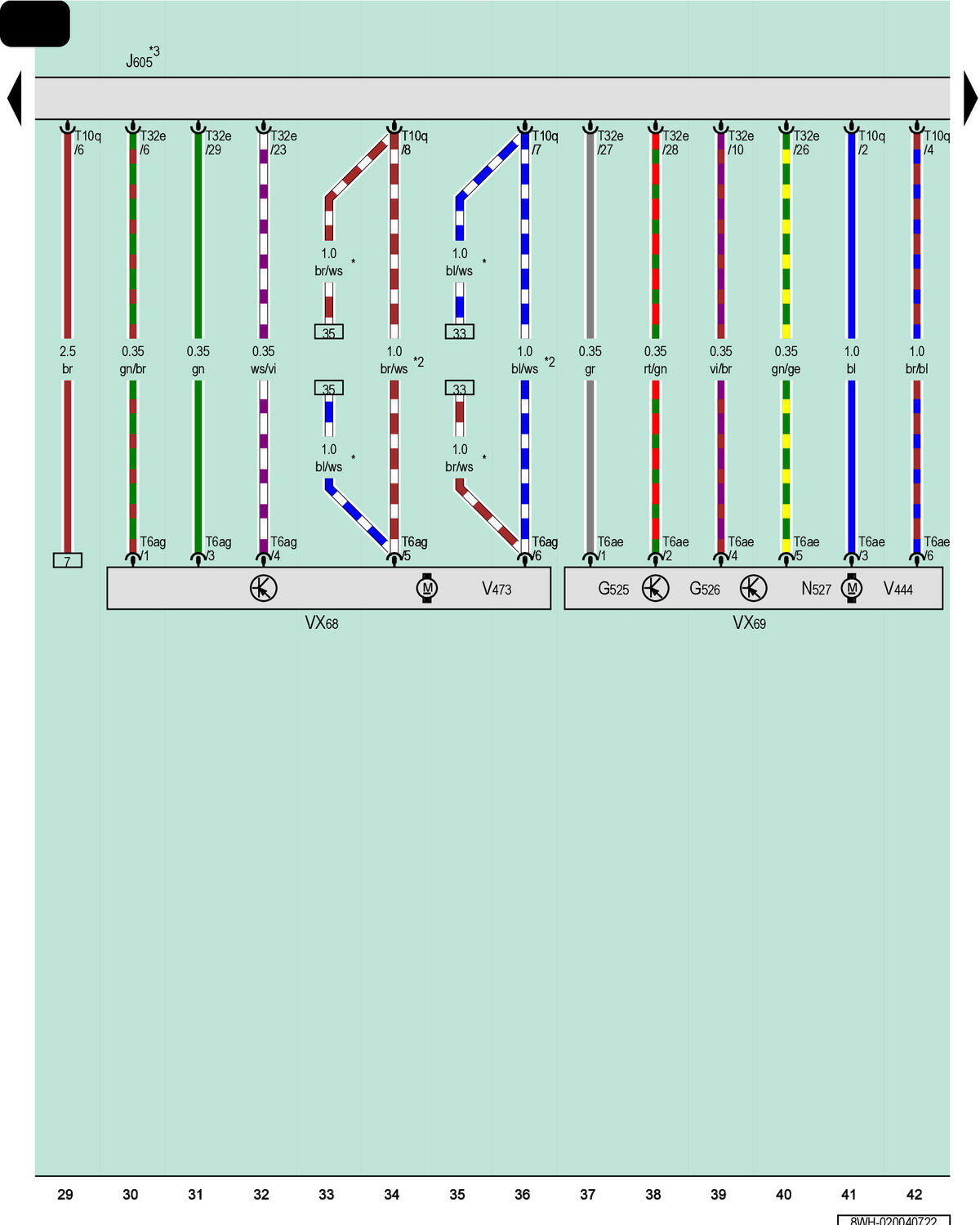

Rear Lid Control Module, Luggage Compartment Cover Drive Unit, Rear Lid Drive Unit

Courtesy of AUDI OF AMERICA, LLC

G525

Rear Lid -Closed- Sensor 1

G526

Rear Lid -Closed- Sensor 2

J605

Rear Lid Control Module

N527

Coupling in Rear Lid Motor 1

T6ae

6-Pin Connector, Brown

T6ag

6-Pin Connector, Black

T10q

10-Pin Connector, Black

T32e

32-Pin Connector, Black

VX68

Luggage Compartment Cover Drive Unit

VX69

Rear Lid Drive Unit

V444

Rear Lid Motor 1

V473

Luggage Compartment Cover Motor 1

*

For Natural Gas Vehicles

*2

Depending on Equipment

*3

Optional Equipment
