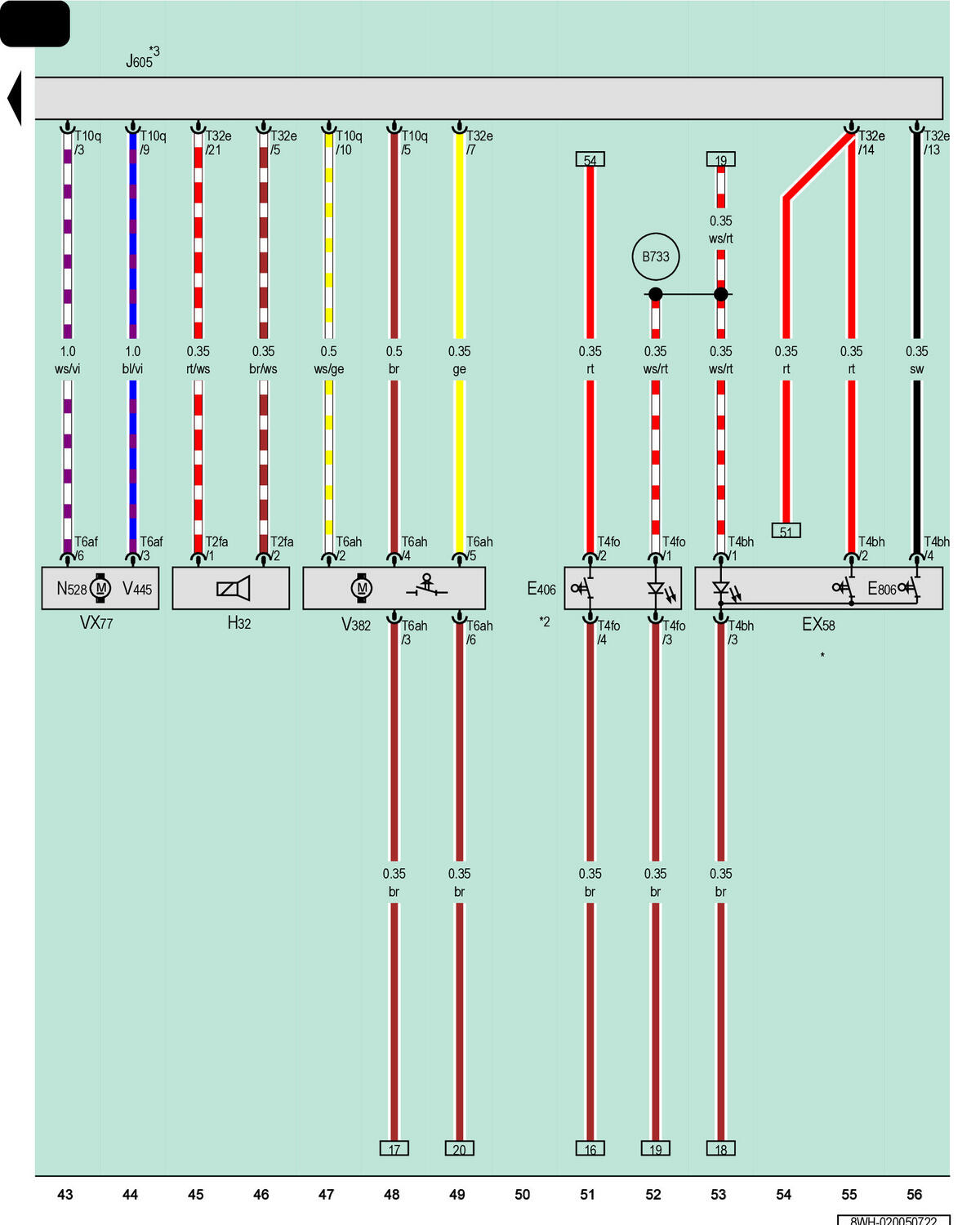

Rear Lid Control Head, Rear Lid Lock Button In Luggage Compartment, Rear Lid Warning Buzzer, Rear Lid Control Module, Rear Lid Drive Unit 2, Rear Lid Closing Aid Motor

Courtesy of AUDI OF AMERICA, LLC

EX58

Rear Lid Control Head

E406

Rear Lid Lock Button in Luggage Compartment

E806

Locking Mechanism Button in Rear Lid

H32

Rear Lid Warning Buzzer

J605

Rear Lid Control Module

N528

Coupling in Rear Lid Motor 2

T2fa

2-Pin Connector, Black

T4bh

4-Pin Connector, Brown

T4fo

4-Pin Connector, Black

T6af

6-Pin Connector, Brown

T6ah

6-Pin Connector, Black

T10q

10-Pin Connector, Black

T32e

32-Pin Connector, Black

VX77

Rear Lid Drive Unit 2

V382

Rear Lid Closing Aid Motor

V445

Rear Lid Motor 2

B733

Connection 58s (in Main Wiring Harness) 3

For Vehicles with Keyless Access Authorization

For Vehicles Without Keyless Access Authorization

Optional Equipment
