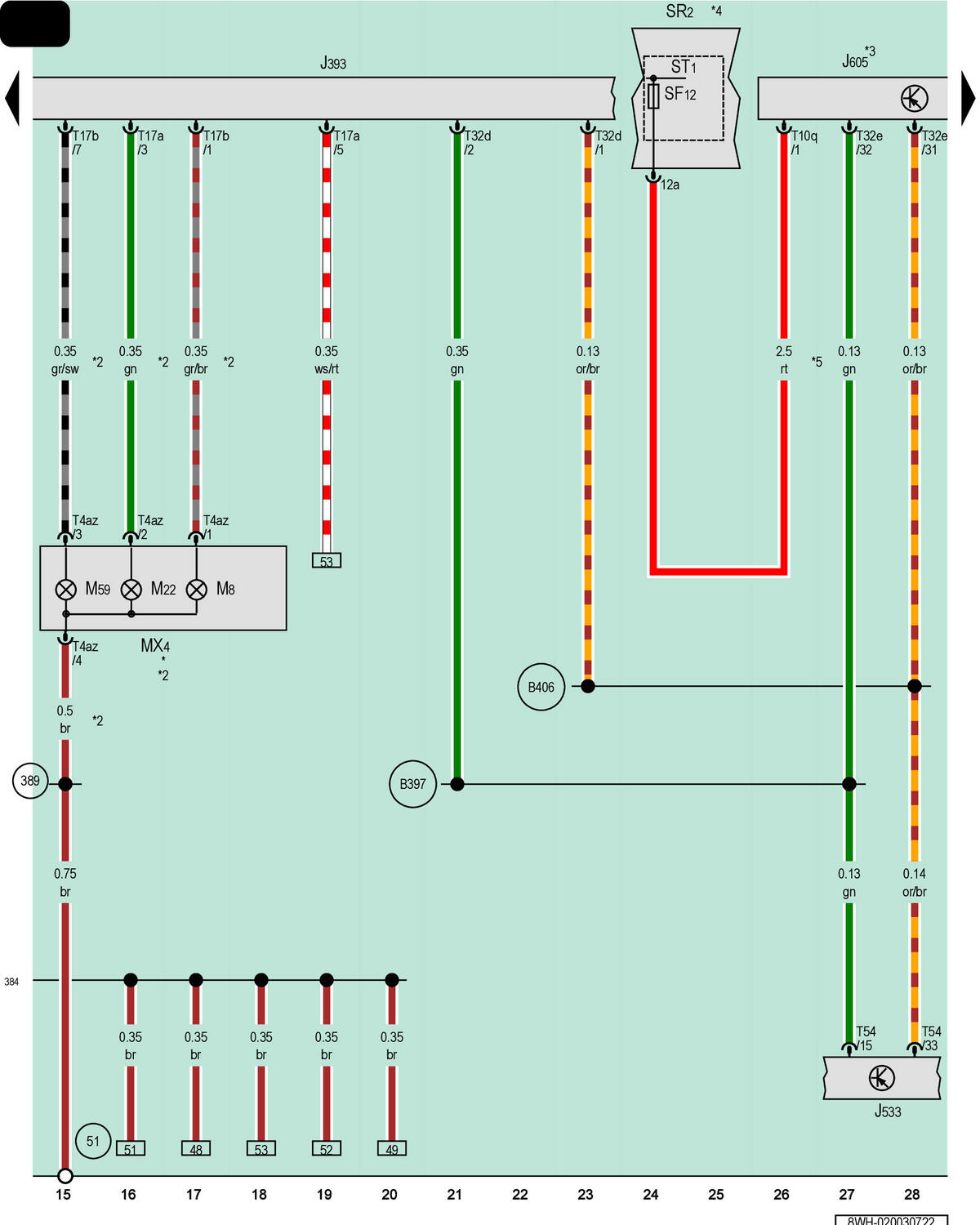

Comfort System Central Control Module, Rear Lid Control Module, Right Tail Lamp
J393
Comfort System Central Control Module
J533
Data Bus on Board Diagnostic Interface
J605
Rear Lid Control Module
MX4
Right Tail Lamp
M8
Right Rear Turn Signal Bulb
M22
Right Brake/Tail Lamp Bulb
M59
Right Brake/Tail Lamp Bulb 2
ST1
Fuse Panel 1, Black
SR2
Relay and Fuse Panel 2, Behind the Left Luggage Compartment Side Trim
SF12
Fuse 12 (On Fuse Panel F)
T4az
4-Pin Connector, Green
T10q
10-Pin Connector, Black
T17a
17-Pin Connector, Brown
T17b
17-Pin Connector, Black
T32d
32-Pin Connector, Blue
T32e
32-Pin Connector, Black
T54
54-Pin Connector, Black
51
Ground Connection in Luggage Compartment, Right
384
Ground Connection 19 (in Main Wiring Harness)
389
Ground Connection 24 (in Main Wiring Harness)
B397
Comfort System CAN Bus High Connection 1 (in Main Wiring Harness)
B406
Comfort System CAN Bus Low Connection 1 (in Main Wiring Harness)
*
Refer to Applicable Tail Lamp Wiring Diagram
*2
For Vehicles with Standard Equipment
*3
Optional Equipment
*4
Refer to Applicable Wiring Diagram for Fuse Positions
*5
4.0 Diameter Possible
