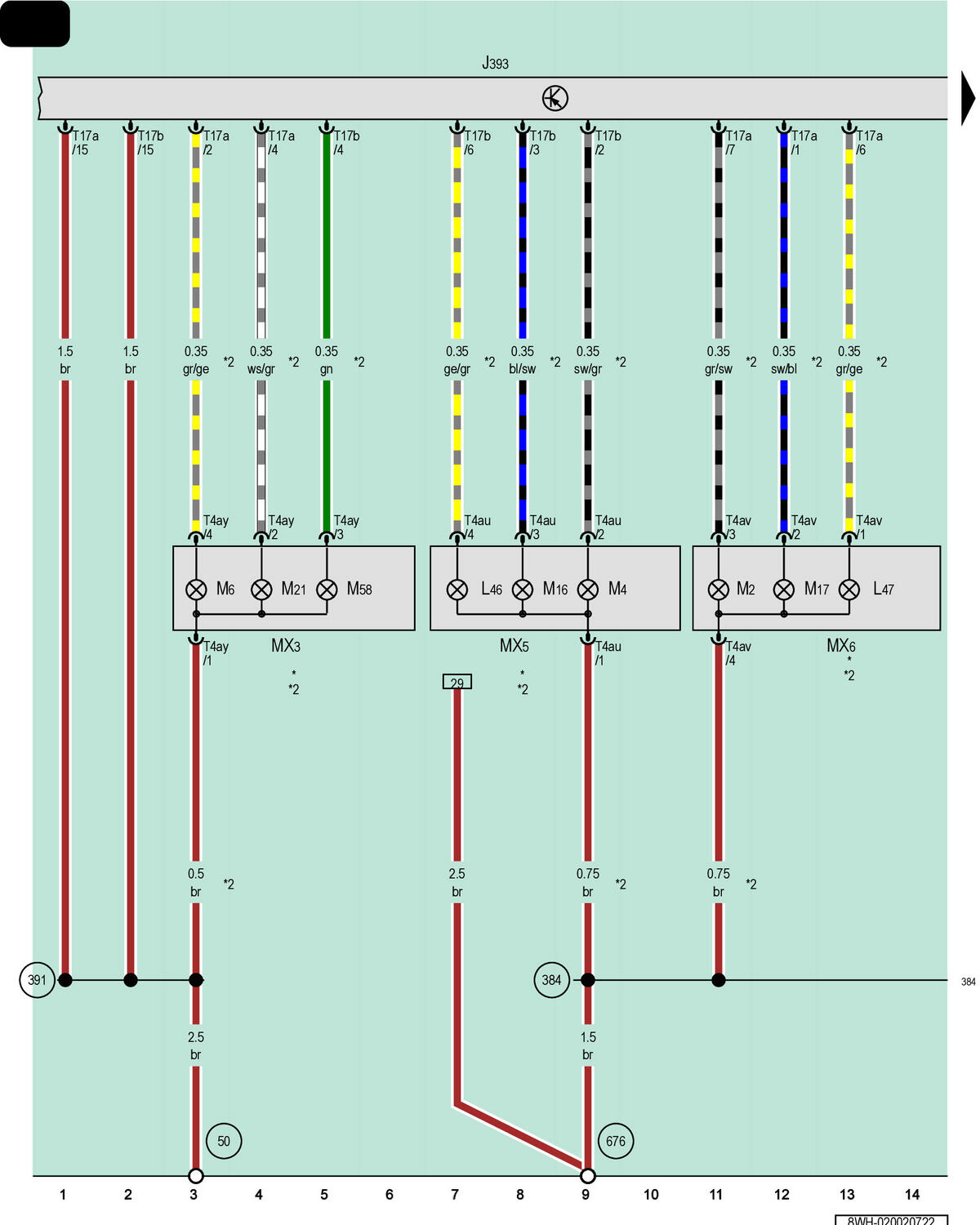

Comfort System Central Control Module, Left Tail Lamp, Left Tail Lamp 2, Right Tail Lamp 2
J393
Comfort System Central Control Module
L46
Left Rear Fog Lamp Bulb
L47
Right Rear Fog Lamp Bulb
M2
Right Tail Lamp Bulb
MX3
Left Tail Lamp
M4
Left Tail Lamp Bulb
MX5
Left Tail Lamp 2
MX6
Right Tail Lamp 2
M6
Left Rear Turn Signal Bulb
M16
Left Back-Up Lamp Bulb
M17
Right Back-Up Lamp Bulb
M21
Left Brake/Tail Lamp Bulb
M58
Left Brake/Tail Lamp Bulb 2
T4au
4-Pin Connector, Black
T4av
4-Pin Connector, Black
T4ay
4-Pin Connector, Green
T17a
17-Pin Connector, Brown
T17b
17-Pin Connector, Black
50
Ground Connection in Luggage Compartment, Left
384
Ground Connection 19 (in Main Wiring Harness)
391
Ground Connection 26 (in Main Wiring Harness)
676
Ground Connection 2 in Luggage Compartment, Left
*
Refer to Applicable Tail Lamp Wiring Diagram
*2
For Vehicles with Standard Equipment
