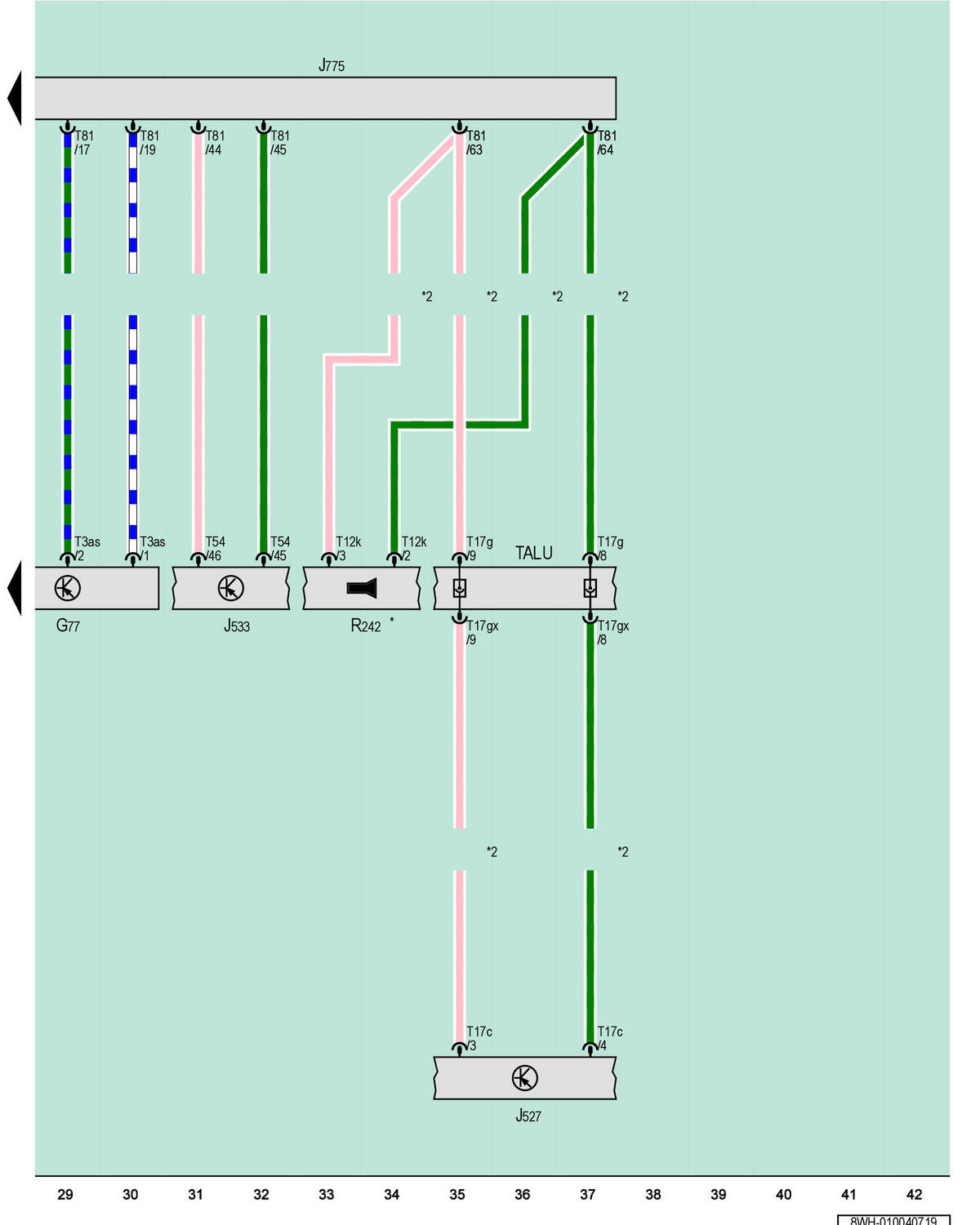

Right Rear Level Control System Sensor, Steering Column Electronics Control Module, Data Bus On Board Diagnostic Interface, Drivetrain Control Module, Driver Assistance Systems Front Camera

Courtesy of AUDI OF AMERICA, LLC

G77

Right Rear Level Control System Sensor

J527

Steering Column Electronics Control Module

J533

Data Bus on Board Diagnostic Interface

J775

Drivetrain Control Module

R242

Driver Assistance Systems Front Camera

T3as

3-Pin Connector, Black

T12k

12-Pin Connector, Black

T17c

17-Pin Connector, Yellow

T17g

17-Pin Connector, Blue

T17gx

17-Pin Connector, Blue

T54

54-Pin Connector, Black

T81

81-Pin Connector, Black

TALU

Coupling Point on Left A-Pillar, Bottom

*

For Vehicles with Adaptive Cruise Control (ACC)

*2

Data Bus Wire (Flexray Bus)
