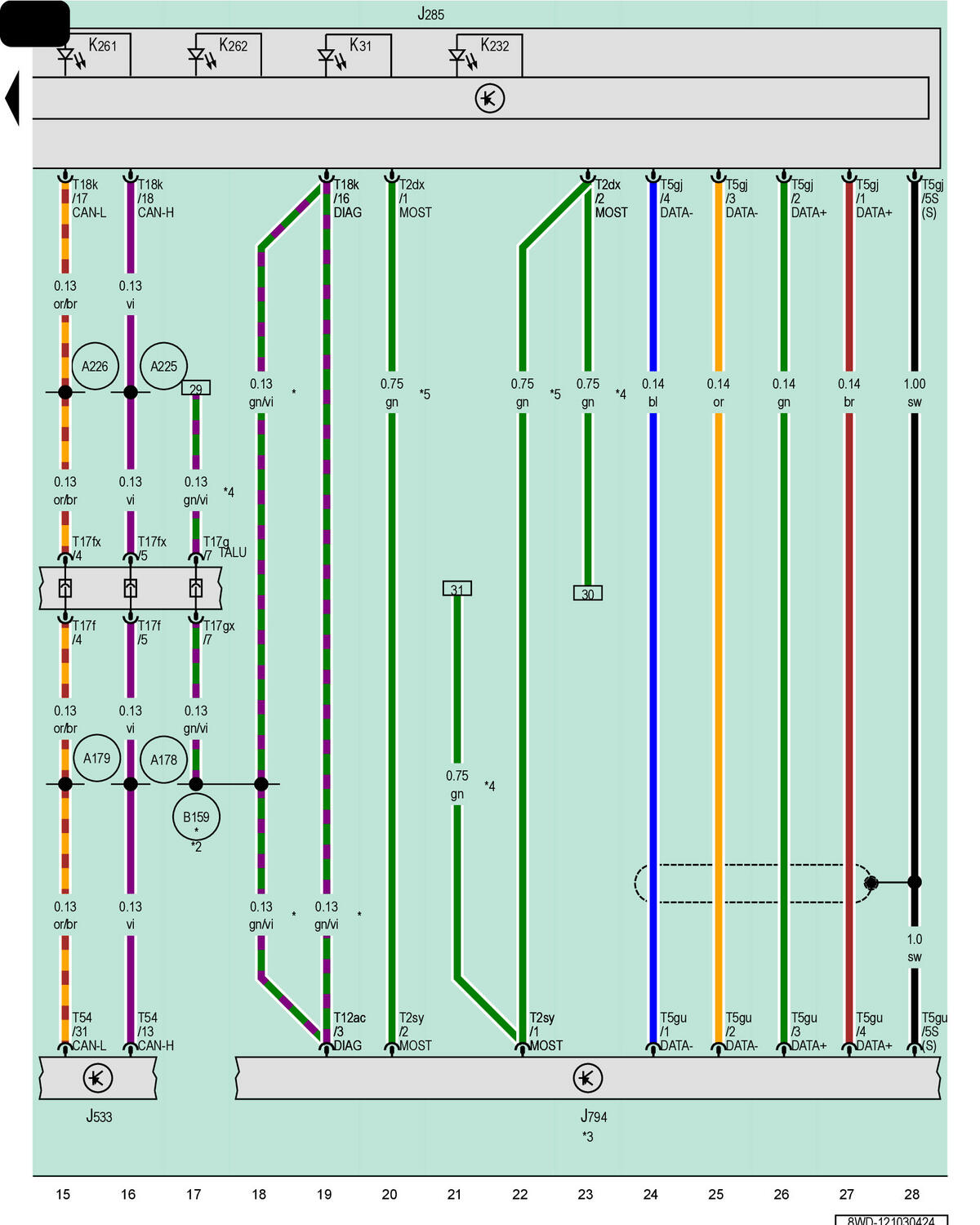

Instrument Cluster Control Module, Data Bus On Board Diagnostic Interface
J285
Instrument Cluster Control Module
J533
Data Bus on Board Diagnostic Interface
J794
Information Electronics Control Module 1
K31
Cruise Control Indicator Lamp
K232
Lane Change Assistance Indicator Lamp
K261
Left Turn Signal Indicator Lamp
K262
Right Emergency Flasher Indicator Lamp
T2dx
2-Pin Connector, Black
T2sy
2-Pin Connector, Black
T5gj
5-Pin Connector, Black
T5gu
5-Pin Connector, White
T12ac
12-Pin Connector, Gray
T17f
17-Pin Connector, Red
T17fx
17-Pin Connector, Red
T17g
17-Pin Connector, Blue
T17gx
17-Pin Connector, Blue
T18k
18-Pin Connector, Black
T54
54-Pin Connector, Black
TALU
Coupling Point on Left A-Pillar, Bottom
A178
Infotainment CAN Bus High Connection (in Instrument Panel Wiring Harness)
A179
Infotainment CAN Bus Low Connection (in Instrument Panel Wiring Harness)
A225
Infotainment CAN Bus High Connection 2 (in Instrument Panel Wiring Harness)
A226
Infotainment CAN Bus Low Connection 2 (in Instrument Panel Wiring Harness)
B159
Diagnostic Connection (in Interior Wiring Harness)
*
Depending on Equipment
*2
Refer to Applicable Wiring Diagram for Infotainment Most Bus
*3
Refer to Applicable MMI (Information Electronics) Wiring Diagram
*4
For Vehicles with TV Tuner
*5
For Vehicles Without TV Tuner
