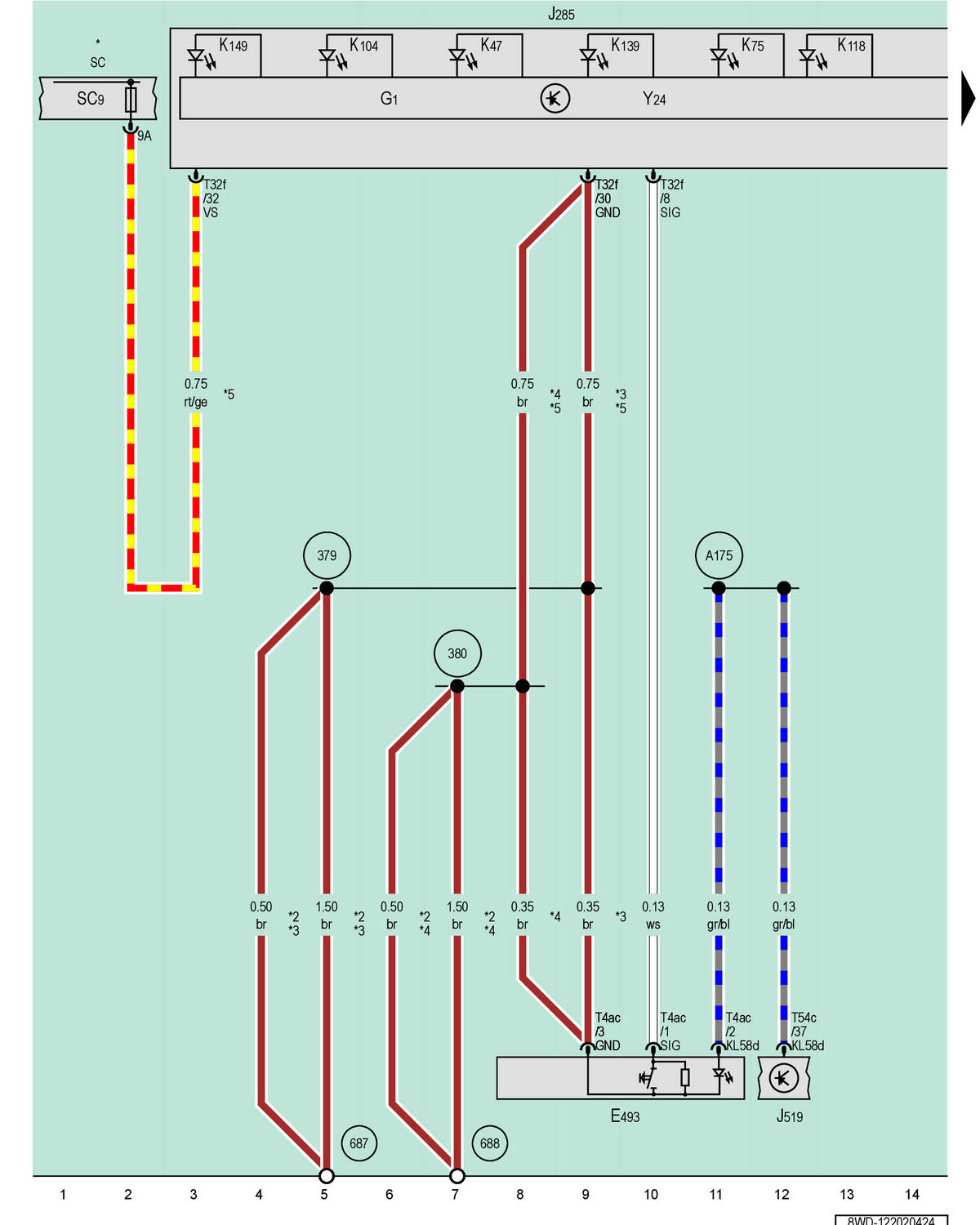

Instrument Cluster Operation Button, Instrument Cluster Control Module, Display Unit In Instrument Cluster
E493
Instrument Cluster Operation Button
G1
Fuel Gauge
J285
Instrument Cluster Control Module
J519
Vehicle Electrical System Control Module
K47
ABS Indicator Lamp
K75
Airbag Indicator Lamp
K104
Diesel Electronics Indicator Lamp
K118
Brake System Indicator Lamp
K139
Parking Brake Indicator Lamp
K149
Engine Electronics Indicator Lamp
SC
Fuse Panel C
SC9
Fuse 9 (On Fuse Panel C)
T4ac
4-Pin Connector, Black
T32f
32-Pin Connector, Gray
T54c
54-Pin Connector, Black
Y24
Display Unit in Instrument Cluster
379
Ground Connection 14 (in Main Wiring Harness)
380
Ground Connection 15 (in Main Wiring Harness)
687
Ground Connection 1 on Center Tunnel
688
Ground Connection 2 on Center Tunnel
A175
Connection 58s (in Instrument Panel Wiring Harness)
*
Refer to Applicable Wiring Diagram for Fuse Positions
*2
Depending on Equipment
*3
For LHD Vehicles
*4
For RHD Vehicles
*5
Diameter Depends on Equipment
