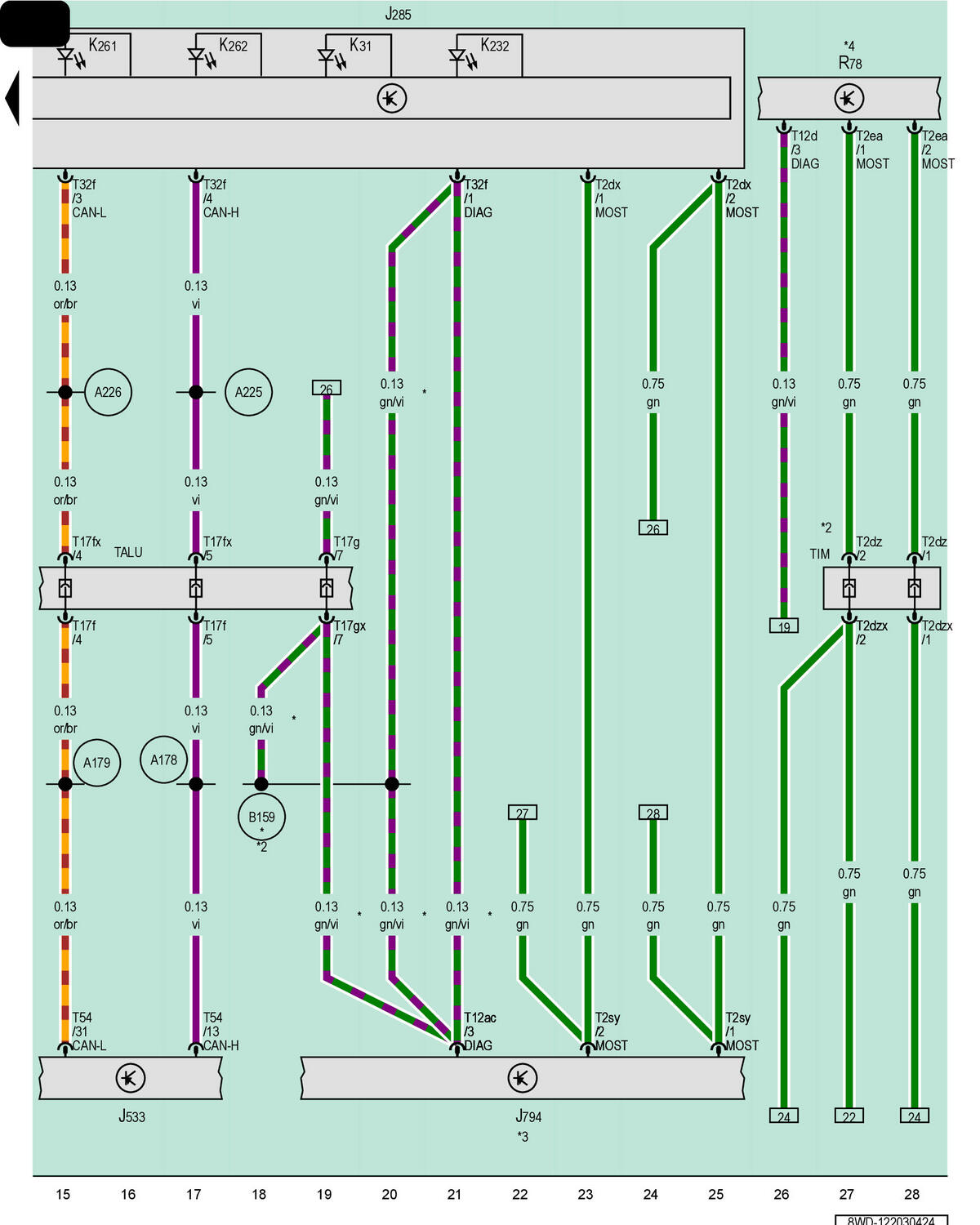

Instrument Cluster Control Module, Data Bus On Board Diagnostic Interface
J285
Instrument Cluster Control Module
J533
Data Bus on Board Diagnostic Interface
J794
Information Electronics Control Module 1
K31
Cruise Control Indicator Lamp
K232
Lane Change Assistance Indicator Lamp
K261
Left Turn Signal Indicator Lamp
K262
Right Emergency Flasher Indicator Lamp
R78
TV Tuner
T2dx
2-Pin Connector, Black
T2dz
2-Pin Connector, Black
T2dzx
2-Pin Connector, Black
T2ea
2-Pin Connector, Black
T2sy
2-Pin Connector, Black
T12ac
12-Pin Connector, Gray
T12d
12-Pin Connector, Black
T17f
17-Pin Connector, Red
T17fx
17-Pin Connector, Red
T17g
17-Pin Connector, Blue
T17gx
17-Pin Connector, Blue
T32f
32-Pin Connector, Gray
T54
54-Pin Connector, Black
TALU
Coupling Point on Left A-Pillar, Bottom
TIM
Coupling Point in Interior, Center
A178
Infotainment CAN Bus High Connection (in Instrument Panel Wiring Harness)
A179
Infotainment CAN Bus Low Connection (in Instrument Panel Wiring Harness)
A225
Infotainment CAN Bus High Connection 2 (in Instrument Panel Wiring Harness)
A226
Infotainment CAN Bus Low Connection 2 (in Instrument Panel Wiring Harness)
B159
Diagnostic Connection (in Interior Wiring Harness)
*
Depending on Equipment
*2
Refer to Applicable Wiring Diagram for Infotainment Most Bus
*3
Refer to Applicable MMI (Information Electronics) Wiring Diagram
*4
Refer to the Applicable TV Tuner Wiring Diagram
