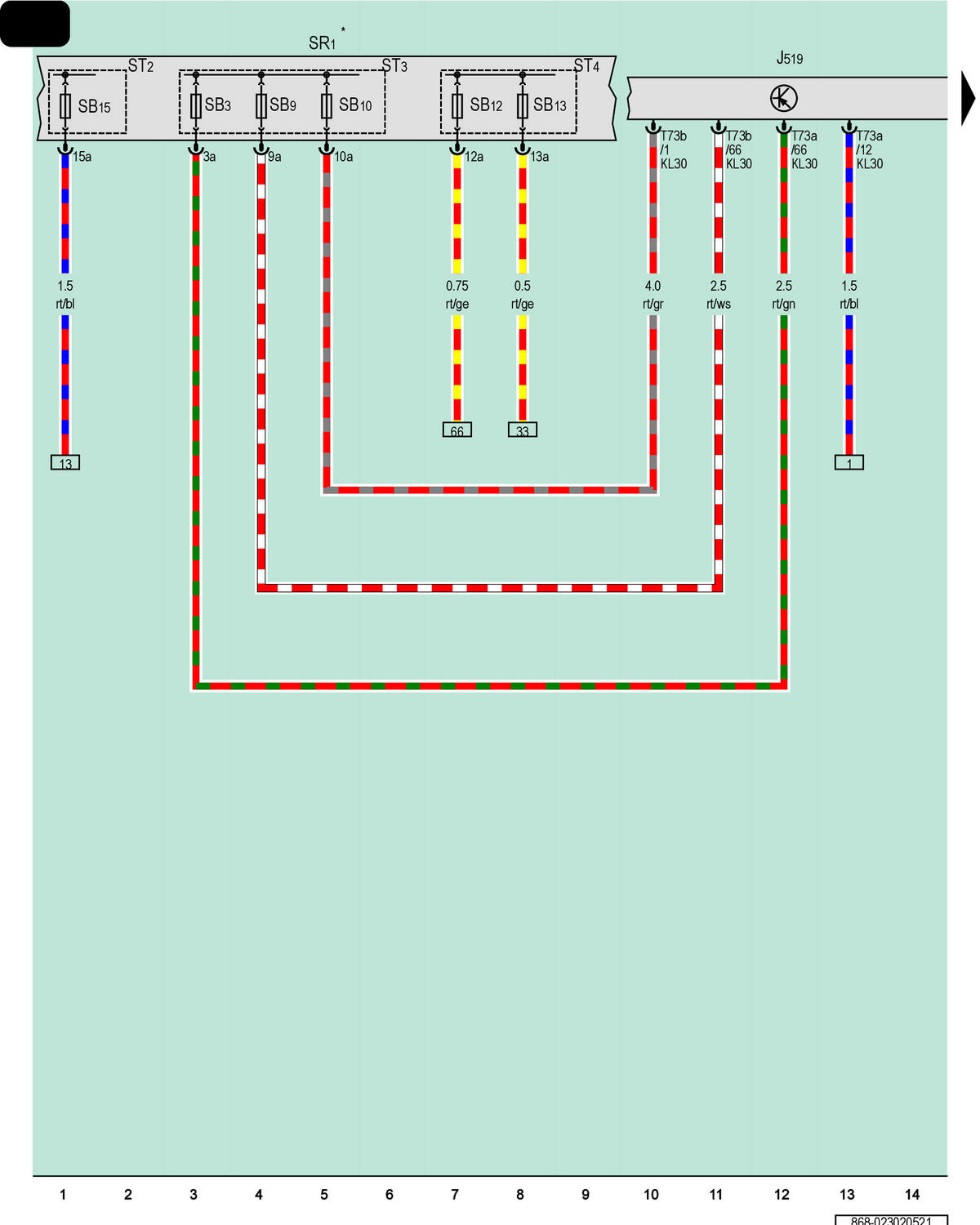

Vehicle Electrical System Control Module

Courtesy of AUDI OF AMERICA, LLC

J519

SR1

Relay and Fuse Panel 1

ST2

Fuse Panel 2, Red

SB3

Fuse 3 (On Fuse Panel B)

ST3

Fuse Panel 3, Black

ST4

Fuse Panel 4, Black

SB9

Fuse 9 (On Fuse Panel B)

SB10

Fuse 10 (On Fuse Panel B)

SB12

Fuse 12 (On Fuse Panel B)

SB13

Fuse 13 (On Fuse Panel B)

SB15

Fuse 15 (On Fuse Panel B)

T73a

73-Pin Connector, Black

T73b

73-Pin Connector, Black

Refer to Applicable Wiring Diagram for Fuse Positions
