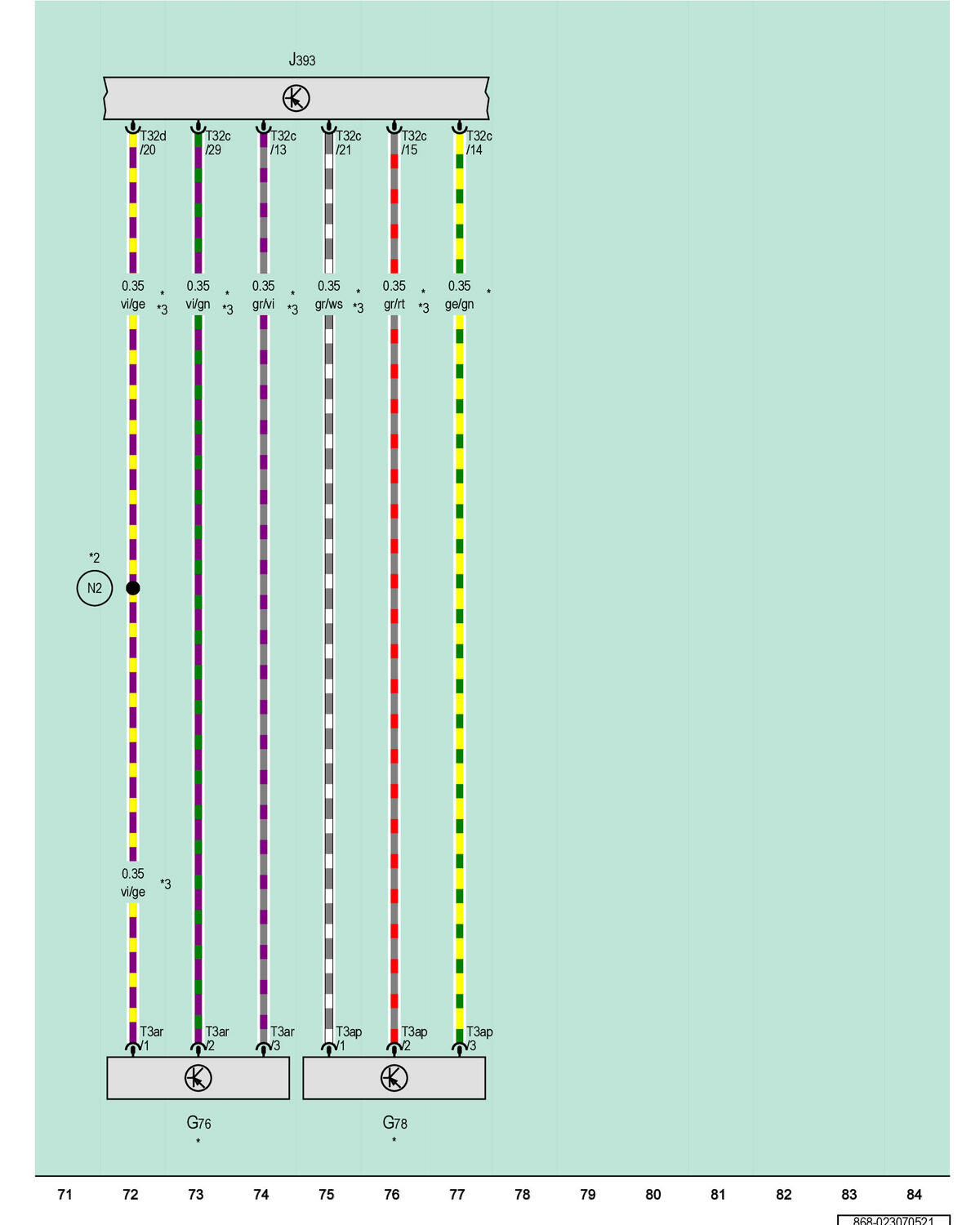

Left Rear Level Control System Sensor, Comfort System Central Control Module

Courtesy of AUDI OF AMERICA, LLC

G76

Left Rear Level Control System Sensor

G78

Left Front Level Control System Sensor

J393

Comfort System Central Control Module

T3ap

3-Pin Connector, Black

T3ar

3-Pin Connector, Black

T32c

32-Pin Connector, Black

T32d

32-Pin Connector, Blue

N2

Connection 1 (in Headlamp Range Control Wiring Harness)

*

For Vehicles Without Level Control System

*2

Running Change

*3

Different Wire Color Possible
