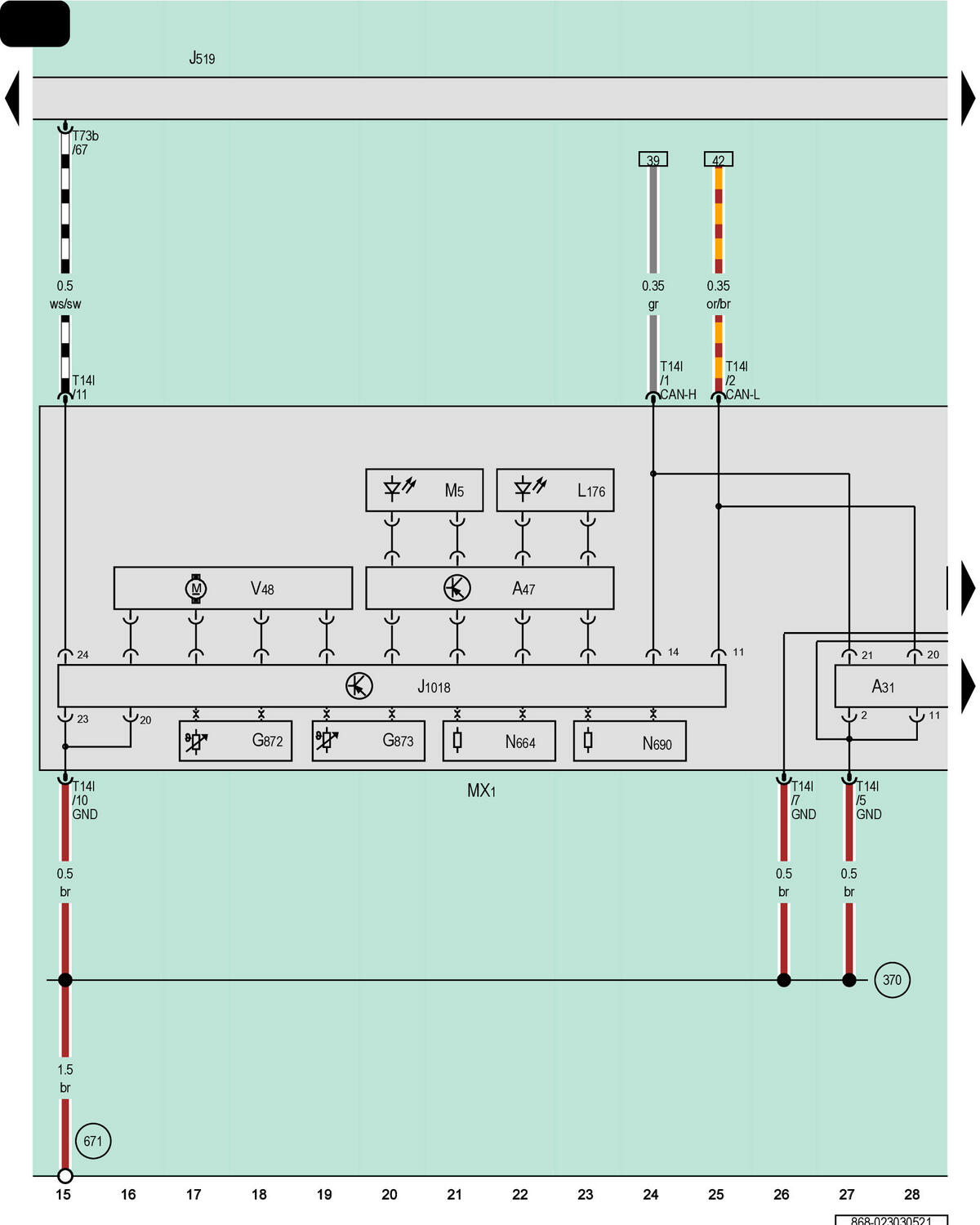

Left Led Headlamp Power Output Module 1, Vehicle Electrical System Control Module, Left Light Control Module, Left Daytime Running Lamp And Position Lamp Led Module, Left Front Headlamp, Left Front Turn Signal Bulb, Left Headlamp Range Control Adjustment Motor

Courtesy of AUDI OF AMERICA, LLC

A31

Left LED Headlamp Power Output Module 1

A47

Left Headlamp Auxiliary Functions Power Output Module

G872

Left Headlamp Temperature Sensor 4

G873

Left Headlamp Temperature Sensor 5

J519

Vehicle Electrical System Control Module

J1018

Left Light Control Module

L176

Left Daytime Running Lamp and Position Lamp LED Module

MX1

Left Front Headlamp

Left Front Turn Signal Bulb

N664

Current Coding Resistance 3 for Left Headlamp

N690

Current Coding Resistance 4 for Left Headlamp

T14l

14-Pin Connector, Black

T73b

73-Pin Connector, Black

V48

Left Headlamp Range Control Adjustment Motor

370

Ground Connection 5 (in Main Wiring Harness)

671

Ground Connection 1 on Left Front Longitudinal Member
