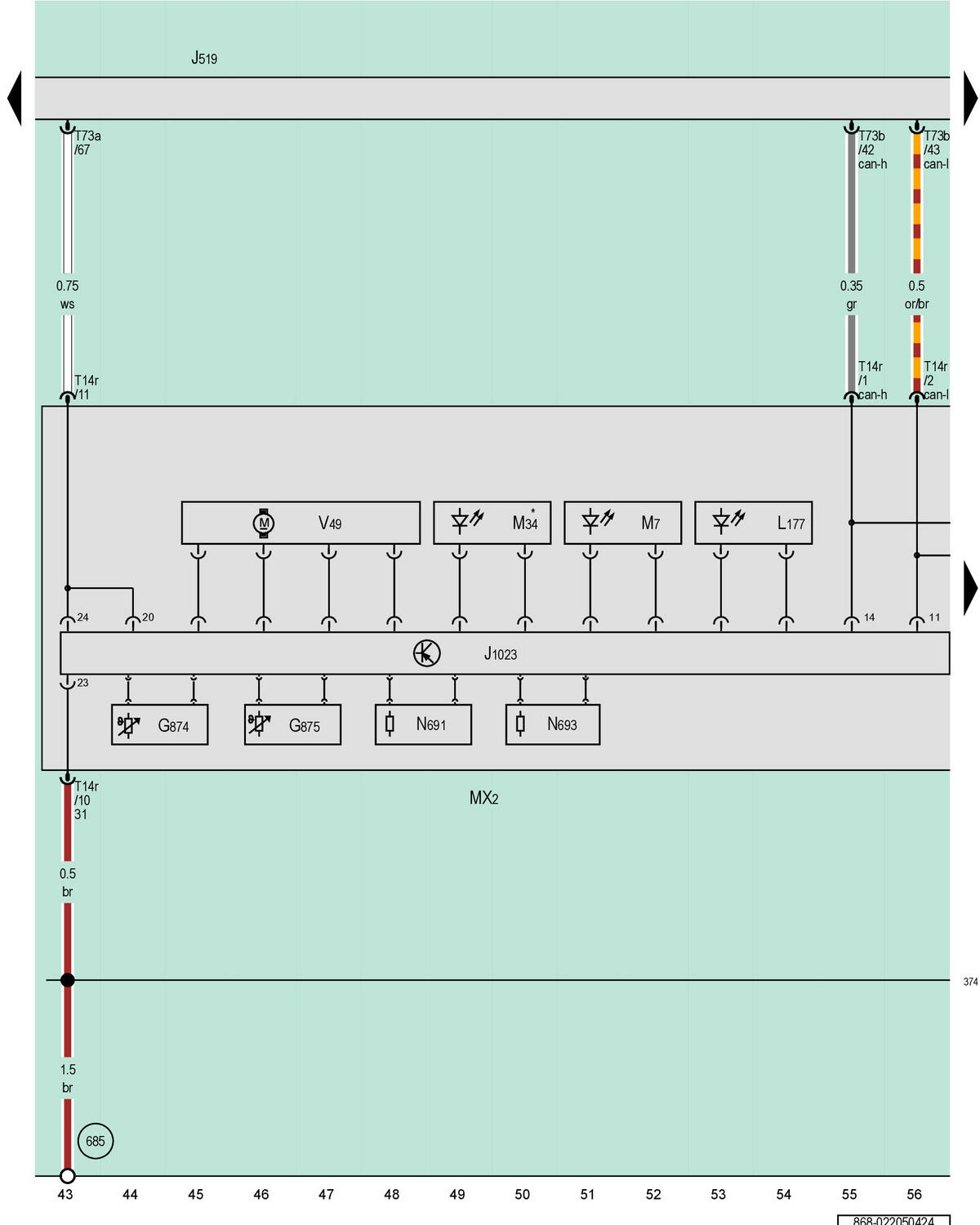

Vehicle Electrical System Control Module, Right Light Control Module, Right Daytime Running Lamp And Position Lamp Led Module, Right Front Headlamp, Right Front Turn Signal Bulb, Right Front Side Marker Lamp Bulb, Right Headlamp Range Control Adjustment Motor

Courtesy of AUDI OF AMERICA, LLC

G874

Right Headlamp Temperature Sensor 4

G875

Right Headlamp Temperature Sensor 5

J519

Vehicle Electrical System Control Module

J1023

Right Light Control Module

L177

Right Daytime Running Lamp and Position Lamp LED Module

MX2

Right Front Headlamp

Right Front Turn Signal Bulb

M34

Right Front Side Marker Lamp Bulb

N691

Current Coding Resistance 4 for Right Headlamp

N693

Current Coding Resistance 5 for Right Headlamp

T14r

14-Pin Connector, Black

T73a

73-Pin Connector, Black

T73b

73-Pin Connector, Black

V49

Right Headlamp Range Control Adjustment Motor

374

Ground Connection 9 (in Main Wiring Harness)

685

Ground Connection 1 on Right Front Longitudinal Member

For USA Only
