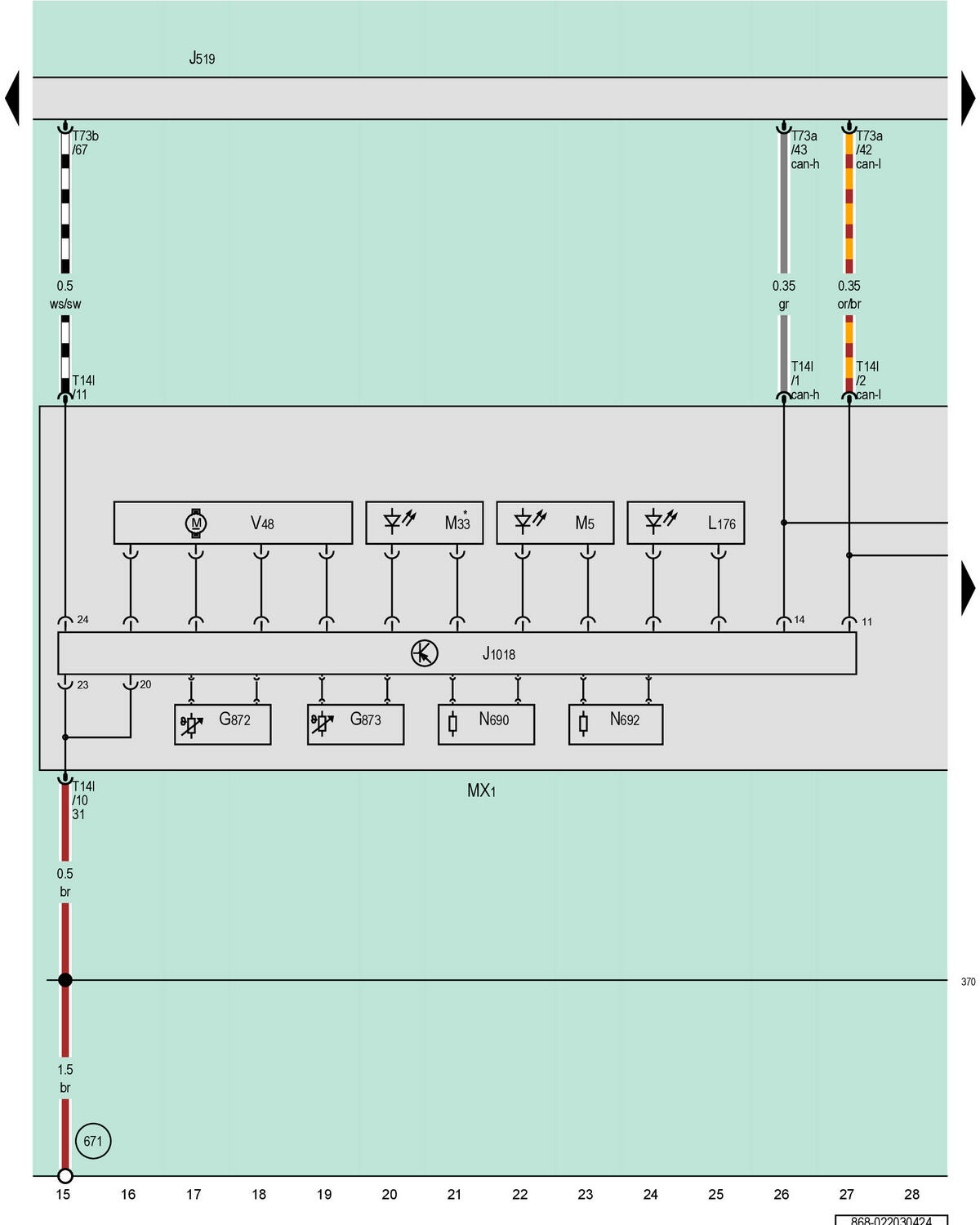

Vehicle Electrical System Control Module, Left Light Control Module, Left Daytime Running Lamp And Position Lamp Led Module, Left Front Headlamp, Left Front Turn Signal Bulb, Left Front Side Marker Lamp Bulb, Left Headlamp Range Control Adjustment Motor

Courtesy of AUDI OF AMERICA, LLC

G872

Left Headlamp Temperature Sensor 4

G873

Left Headlamp Temperature Sensor 5

J519

Vehicle Electrical System Control Module

J1018

Left Light Control Module

L176

Left Daytime Running Lamp and Position Lamp LED Module

MX1

Left Front Headlamp

Left Front Turn Signal Bulb

M33

Left Front Side Marker Lamp Bulb

N690

Current Coding Resistance 4 for Left Headlamp

N692

Current Coding Resistance 5 for Left Headlamp

T14l

14-Pin Connector, Black

T73a

73-Pin Connector, Black

T73b

73-Pin Connector, Black

V48

Left Headlamp Range Control Adjustment Motor

370

Ground Connection 5 (in Main Wiring Harness)

671

Ground Connection 1 on Left Front Longitudinal Member

For USA Only
