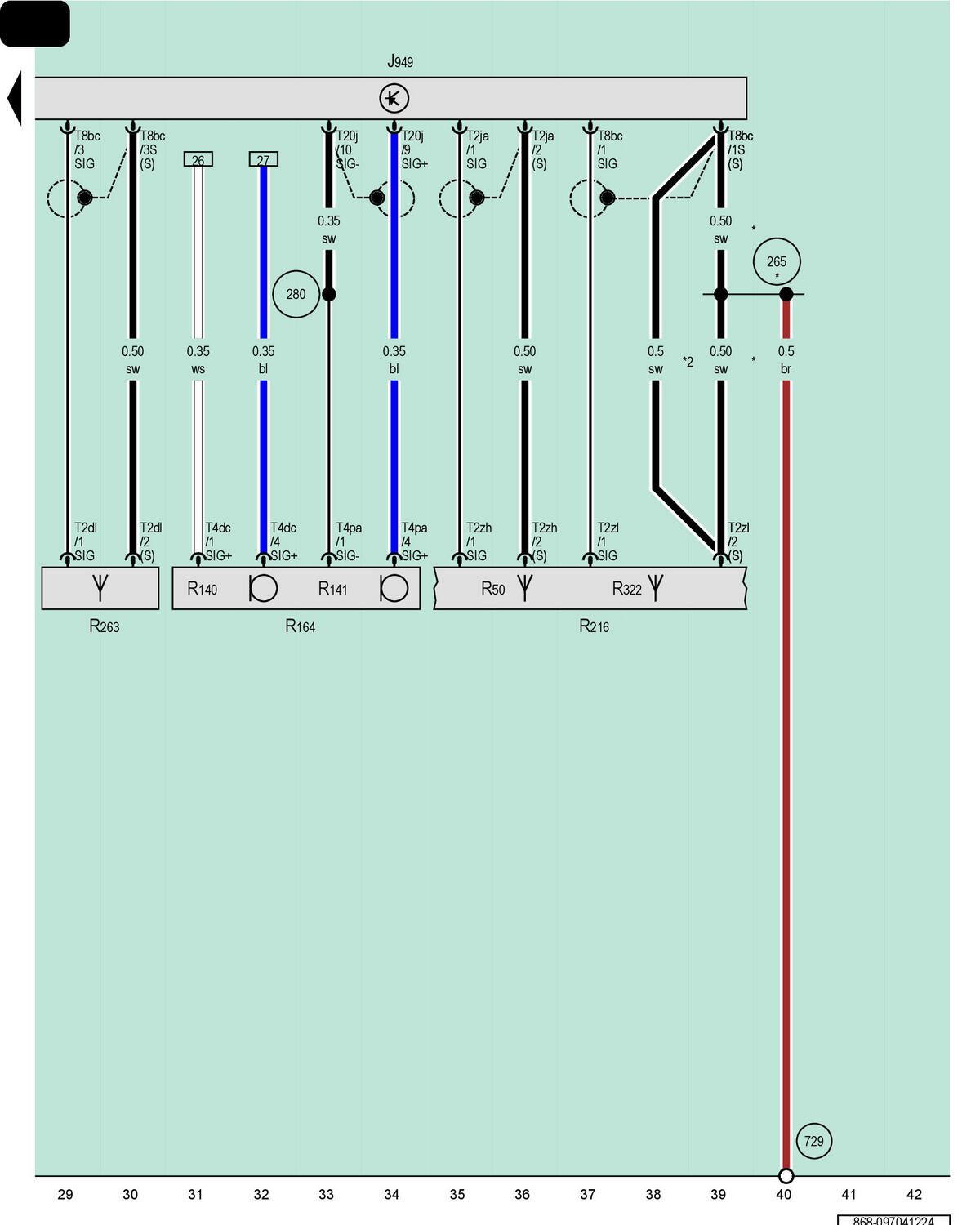

Control Module For Emergency Call Module And Communication Unit, Microphone Unit In Front Roof Module, Roof Antenna, Emergency Call Module Antenna

Courtesy of AUDI OF AMERICA, LLC

J949

Control Module for Emergency Call Module and Communication Unit

R50

GPS Antenna

R140

Left Front Microphone

R141

Right Front Microphone

R164

Microphone Unit in Front Roof Module

R216

Roof Antenna

R263

Emergency Call Module Antenna

R322

Emergency Call Module Antenna 2

T2dl

2-Pin Connector, Purple

T2ja

2-Pin Connector, Pink

T2zh

2-Pin Connector, Blue

T2zl

2-Pin Connector, Purple

T4dc

4-Pin Connector, Gray

T4pa

4-Pin Connector, Blue

T8bc

8-Pin Connector, Black

T20j

20-Pin Connector, Naturally Cloudy

265

Interior Shielding Ground Connection (in Navigation Wiring Harness)

280

Ground Connection (in Communication Wiring Harness)

729

Ground Connection on Left Rear Wheel Housing

Sedan

Avant
