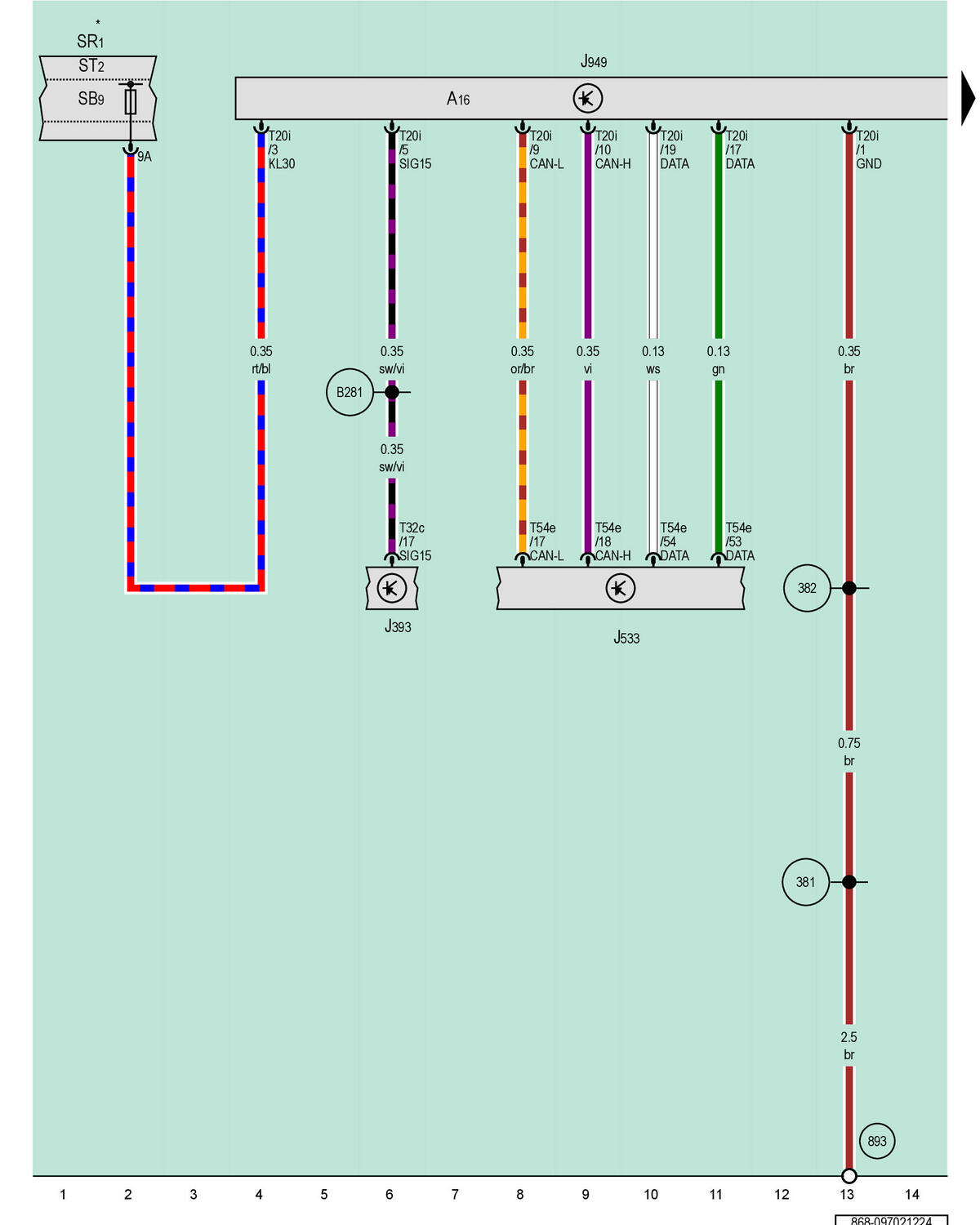

Comfort System Central Control Module, Data Bus On Board Diagnostic Interface, Control Module For Emergency Call Module And Communication Unit
A16
Telematics Emergency Battery
J393
Comfort System Central Control Module
J533
Data Bus on Board Diagnostic Interface
J949
Control Module for Emergency Call Module and Communication Unit
SR1
Relay and Fuse Panel 1
ST2
Fuse Panel 2
SB9
Fuse 9 (On Fuse Panel B)
T20i
20-Pin Connector, Black
T32c
32-Pin Connector, Naturally Cloudy
T54e
54-Pin Connector, Gray
381
Ground Connection 16 (in Main Wiring Harness)
382
Ground Connection 17 (in Main Wiring Harness)
893
Ground Connection 2 on Left B-Pillar
B281
Positive Connection 5 (15a) (in Main Wiring Harness)
*
Refer to Applicable Wiring Diagram for Fuse Positions
