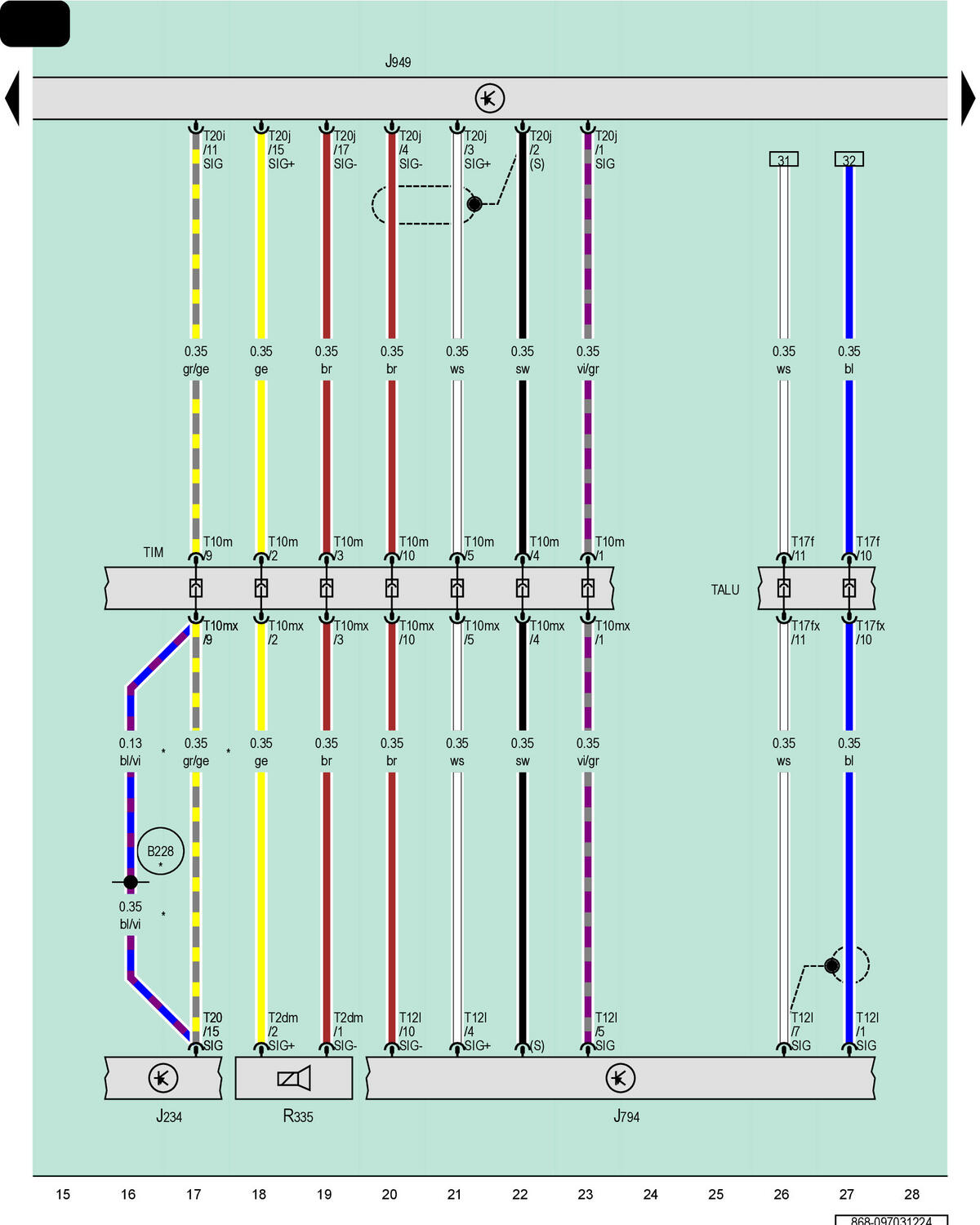

Airbag Control Module, Information Electronics Control Module 1, Control Module For Emergency Call Module And Communication Unit, Emergency Call Module Speaker
J234
Airbag Control Module
J794
Information Electronics Control Module 1
J949
Control Module for Emergency Call Module and Communication Unit
R335
Emergency Call Module Speaker
T2dm
2-Pin Connector, Black
T10m
10-Pin Connector, Black
T10mx
10-Pin Connector, Black
T12l
12-Pin Connector, Blue
T17f
17-Pin Connector, Red
T17fx
17-Pin Connector, Red
T20
20-Pin Connector, Yellow
T20i
20-Pin Connector, Black
T20j
20-Pin Connector, Naturally Cloudy
TALU
Coupling Point on Left A-Pillar, Bottom
TIM
Coupling Point in Interior, Center
B228
Crash Signal Connection (in Interior Wiring Harness)
*
Depending on Equipment
