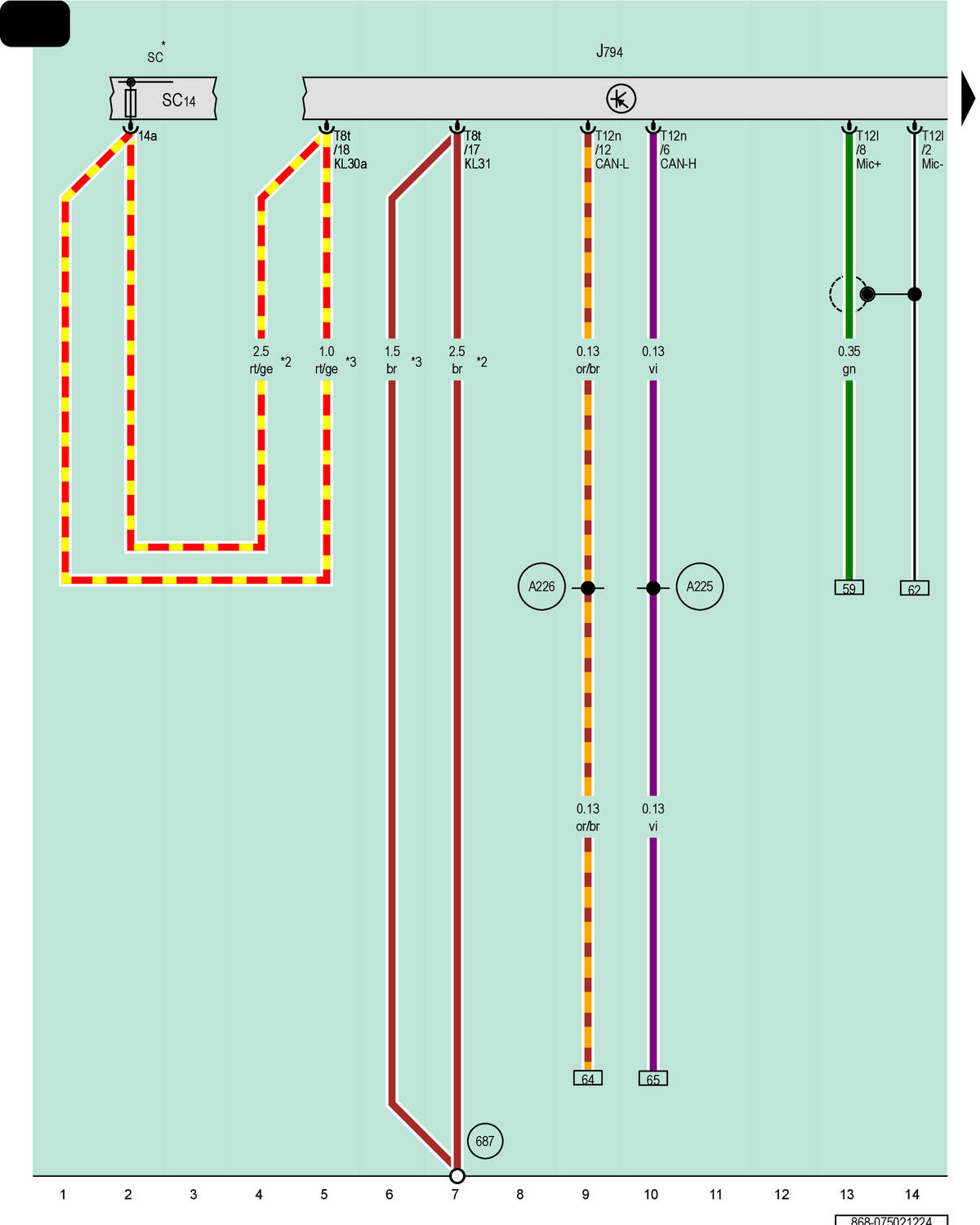

Information Electronics Control Module 1

Courtesy of AUDI OF AMERICA, LLC

J794

Information Electronics Control Module 1

SC

Fuse Panel C

SC14

Fuse 14 (On Fuse Panel C)

T8t

8-Pin Connector, Black

T12l

12-Pin Connector, Blue

T12n

12-Pin Connector, Gray

687

Ground Connection 1 on Center Tunnel

A225

Infotainment CAN Bus High Connection 2 (in Instrument Panel Wiring Harness)

A226

Infotainment CAN Bus Low Connection 2 (in Instrument Panel Wiring Harness)

*

Refer to Applicable Wiring Diagram for Fuse Positions

*2

For Vehicles with Standard Sound System

*3

For Vehicles with Bang & Olufsen Sound System
