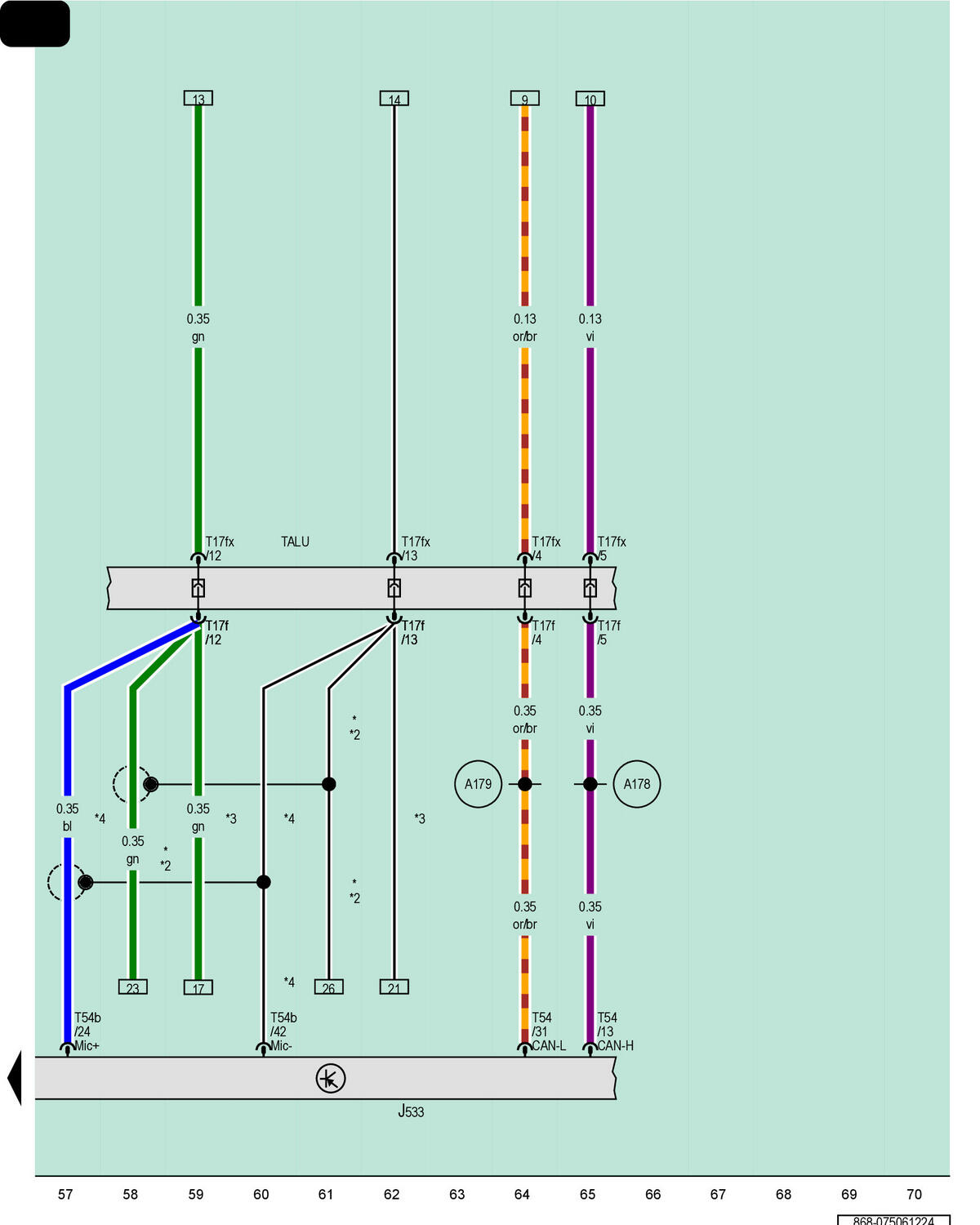

Data Bus On Board Diagnostic Interface

Courtesy of AUDI OF AMERICA, LLC

J533

Data Bus on Board Diagnostic Interface

T17f

17-Pin Connector, Red

T17fx

17-Pin Connector, Red

T54

54-Pin Connector, Black

T54b

54-Pin Connector, Blue

TALU

Coupling Point on Left A-Pillar, Bottom

A178

Infotainment CAN Bus High Connection (in Instrument Panel Wiring Harness)

A179

Infotainment CAN Bus Low Connection (in Instrument Panel Wiring Harness)

*

For LHD Vehicles

*2

Not for Vehicles with Russia Equipment

*3

For RHD Vehicles

*4

For Vehicles with Russia Equipment
