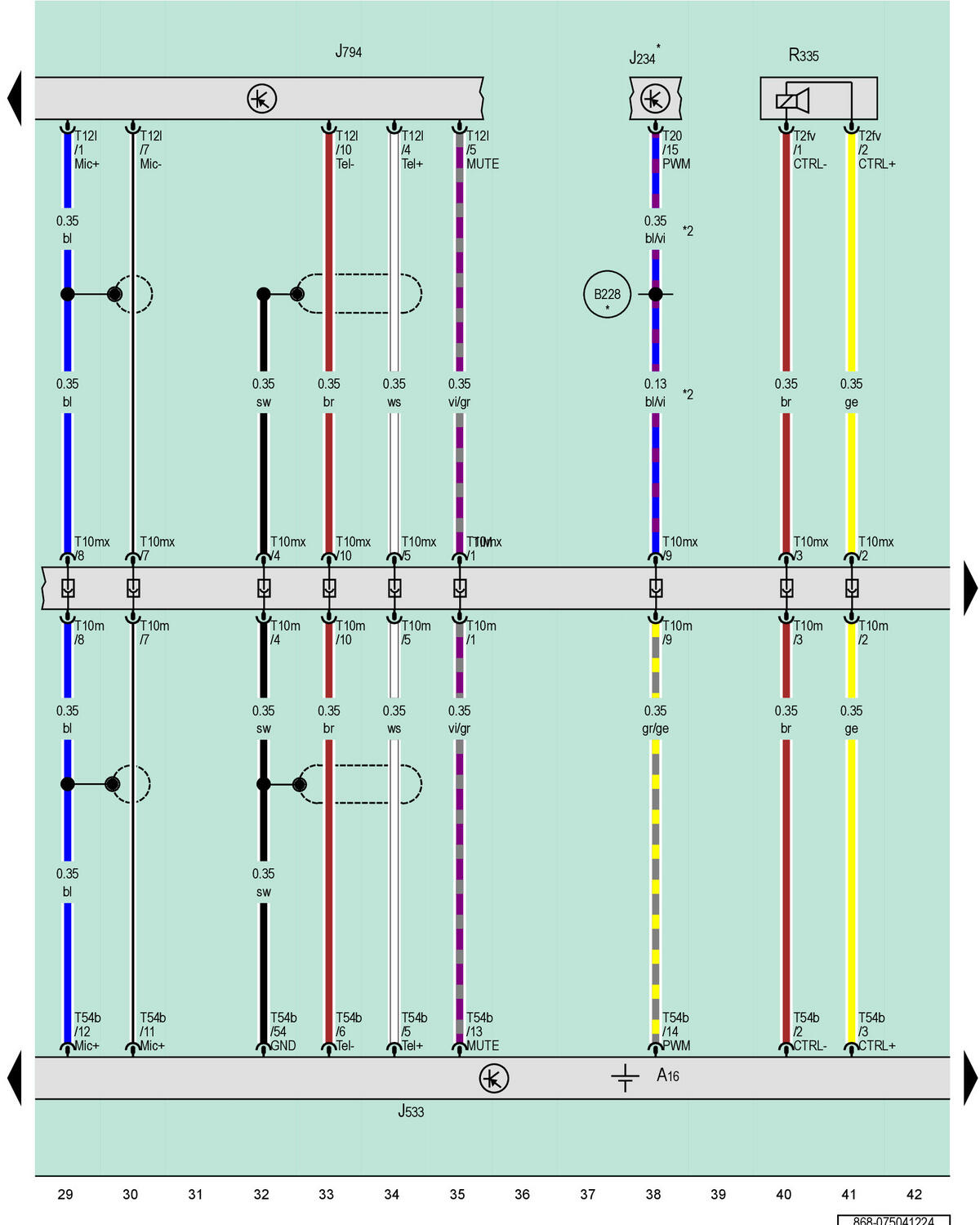

Data Bus On Board Diagnostic Interface, Information Electronics Control Module 1, Emergency Call Module Speaker
A16
Telematics Emergency Battery
J234
Airbag Control Module
J533
Data Bus on Board Diagnostic Interface
J794
Information Electronics Control Module 1
R335
Emergency Call Module Speaker
T2fv
2-Pin Connector, Brown
T10m
10-Pin Connector, Black
T10mx
10-Pin Connector, Black
T12l
12-Pin Connector, Blue
T20
20-Pin Connector, Yellow
T54b
54-Pin Connector, Blue
TIM
Coupling Point in Interior, Center
B228
Crash Signal Connection (in Interior Wiring Harness)
*
Depending on Equipment
*2
The Color of the Wires Depends on Vehicle Equipment
