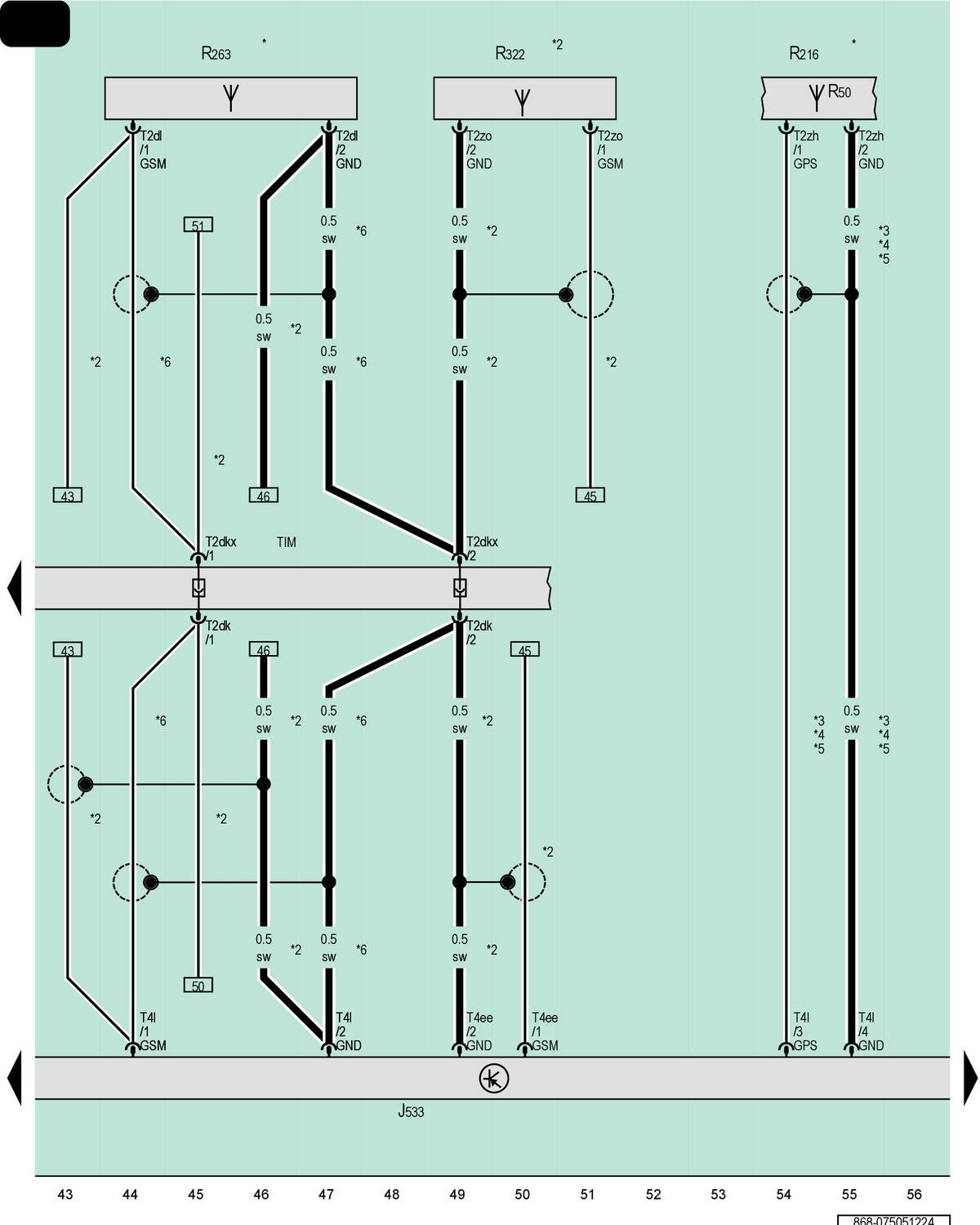

Data Bus On Board Diagnostic Interface, GPS Antenna, Roof Antenna, Emergency Call Module Antenna, Emergency Call Module Antenna 2
J533
Data Bus on Board Diagnostic Interface
R50
GPS Antenna, On the Rear of the Roof
R216
Roof Antenna, On the Rear of the Roof
R263
Emergency Call Module Antenna, In the Instrument Panel, In the Left Side Window, In the Rear Shelf
R322
Emergency Call Module Antenna 2, In the Instrument Panel
T2dk
2-Pin Connector, Purple
T2dkx
2-Pin Connector, Purple
T2dl
2-Pin Connector, Purple
T2zh
2-Pin Connector, Blue
T2zo
2-Pin Connector, Purple
T4ee
4-Pin Connector, Purple
T4l
4-Pin Connector, Pink
TIM
Coupling Point in Interior, Center
*
Depending on Equipment
*2
For Vehicles with Windshield Defogger
*3
For Vehicles Without a Navigation System
*4
For Vehicles with Russia Equipment
*5
For Vehicles with Vehicle Positioning System
*6
For Vehicles with Heat-Insulating Windshield
