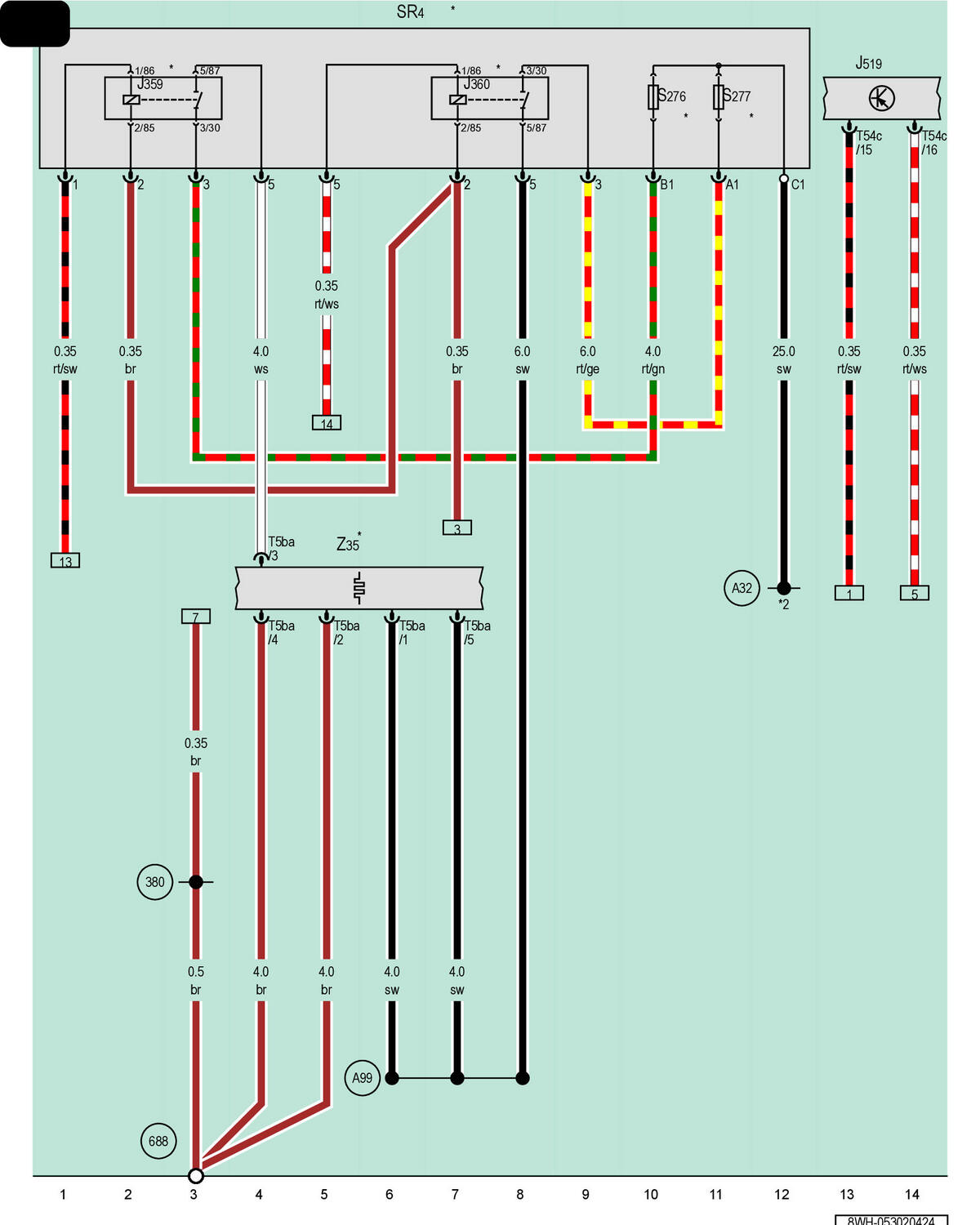

Low Heat Output Relay, High Heat Output Relay, Vehicle Electrical System Control Module, Relay And Fuse Panel 4
J359
Low Heat Output Relay
J360
High Heat Output Relay
J519
Vehicle Electrical System Control Module
SR4
Relay and Fuse Panel 4
S276
Heating Element Fuse 1
S277
Heating Element Fuse 2
T5ba
5-Pin Connector, Black
T54c
54-Pin Connector, Black
Z35
Auxiliary Heater Heating Element
380
Ground Connection 15 (in Main Wiring Harness)
688
Ground Connection 2 on Center Tunnel
A32
Positive Connection (30) (in Instrument Panel Wiring Harness)
A99
Connection 87 (in Instrument Panel Wiring Harness) 1
*
For Vehicles with Auxiliary Heater
*2
Refer to Applicable Wiring Diagram for Fuse Positions
