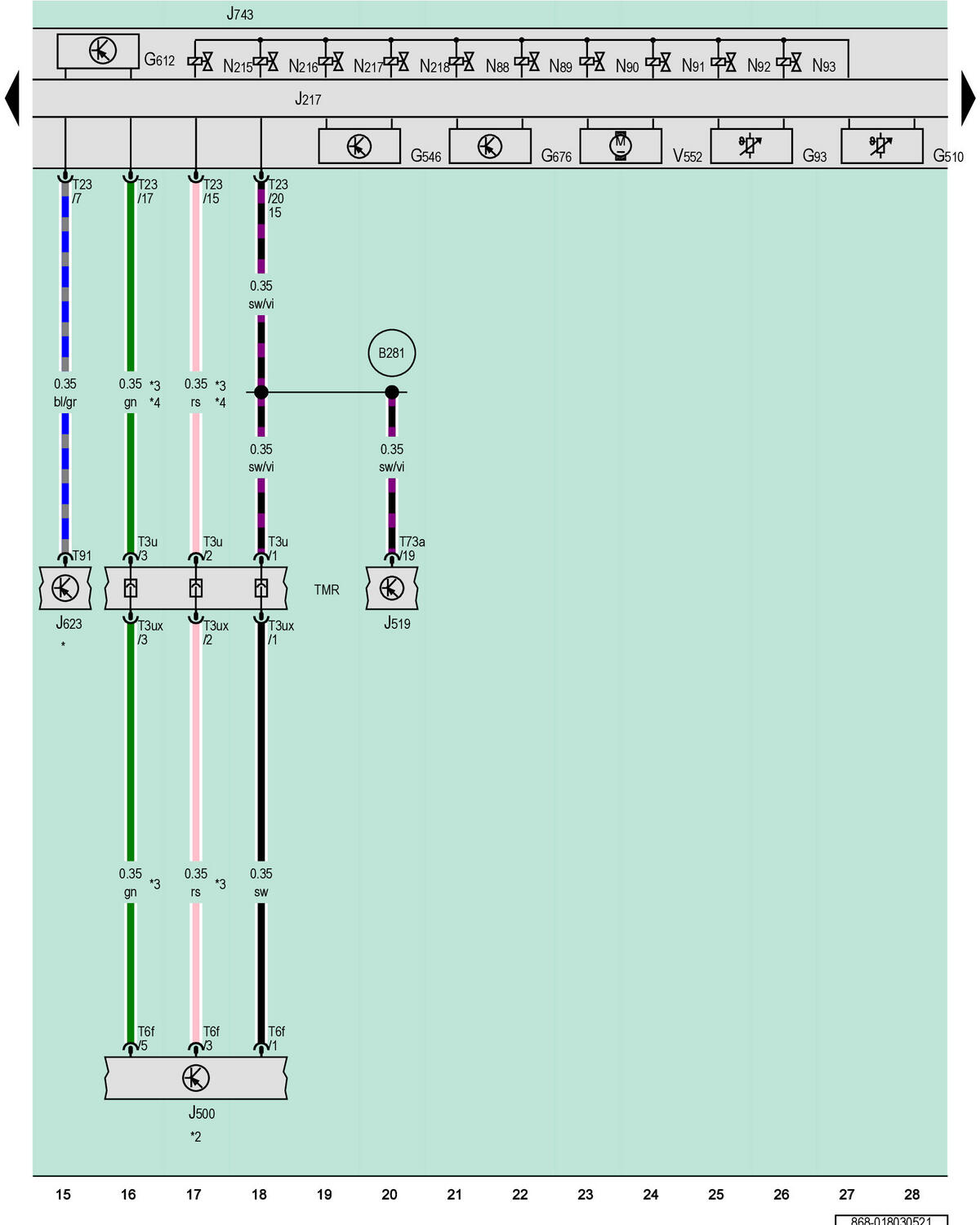

Transmission Input Speed Sensor 2, Transmission Control Module, Dual-Clutch Transmission MECHATRONIC, Solenoid Valve 4, Solenoid Valve 5, Solenoid Valve 6, Automatic Transmission Pressure Regulating Valve 1
G93
Transmission Fluid Temperature Sensor
G510
Temperature Sensor in Control Module
G546
Hydraulic Pressure Sensor 2
G612
Transmission Input Speed Sensor 2
G676
Drive Position Sensor
J217
Transmission Control Module
J500
Power Steering Control Module
J519
Vehicle Electrical System Control Module
J623
Engine/Motor Control Module
J743
Dual-Clutch Transmission Mechatronic
N88
Solenoid Valve 1
N89
Solenoid Valve 2
N90
Solenoid Valve 3
N91
Solenoid Valve 4
N92
Solenoid Valve 5
N93
Solenoid Valve 6
N215
Automatic Transmission Pressure Regulating Valve 1
N216
Automatic Transmission Pressure Regulating Valve 2
N217
Automatic Transmission Pressure Regulating Valve 3
N218
Automatic Transmission Pressure Regulating Valve 4
T3u
3-Pin Connector, Black
T3ux
3-Pin Connector, Black
T6f
6-Pin Connector, Black
T23
23-Pin Connector, Black
T73a
73-Pin Connector, Black
T91
91-Pin Connector, Black
TMR
Coupling Point in Engine/Motor Compartment, Right
V552
Transmission Fluid Auxiliary Hydraulic Pump
B281
Positive Connection 5 (15a) (in Main Wiring Harness)
*
Refer to Applicable Engine Wiring Diagram
*2
For Vehicles with Electromechanical Power Steering
*3
Data Bus Wire (Flexray Bus)
*4
Depending on Equipment
