Ribbed Belt For Starter Generator, Removing And Installing, 2.9L Engine: Removing
Depending on the model, preliminary work may be required. Refer to RIBBED BELT, REMOVING AND INSTALLING .
-- Remove the ribbed belt from the A/C compressor. Refer to RIBBED BELT, REMOVING AND INSTALLING .
Risk of destroying a used ribbed belt by reversing the running direction.
- Mark the running direction before removal.
- Pay attention to the running direction when reinstalling.
Version I
-- Pivot the tensioner counter-clockwise -arrow- using a wrench to release the tension on the ribbed belt.
-- Lock the tensioner using the Belt Tensioner Locking Tool :T40098 and remove the ribbed belt.
Version II
The ribbed belt tension is released in two steps:
1)

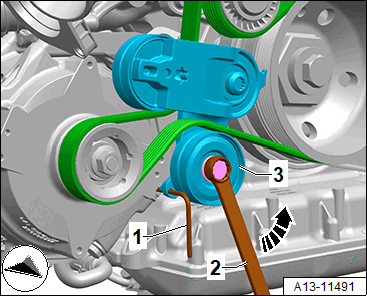

-- Use the wrench -2- to pivot the tensioner at the roller -3- counter-clockwise -arrow- until the Locking Pin :T10060A -1- can be inserted.
-- Release the tension on the tensioner until the Locking Pin :T10060A -1- is touching the starter generator housing.
2)

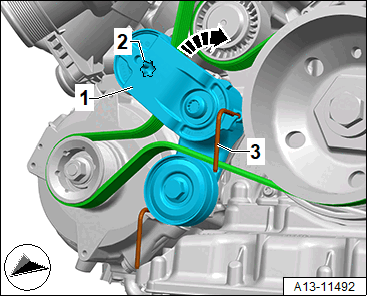

-- Position a suitable bit insert from the Socket Set XZN :VAS 262 013 with the Torx 60 on the mount -2- and pivot the tensioner -1- clockwise -arrow-.
-- Lock the tensioner using the Locking Pin :T10060A or Belt Tensioner Locking Tool :T40098 -3-.
-- Remove the ribbed belt.
