Ribbed Belt TENSIONER For Starter Generator, Removing And Installing, 2.9L/3.0L Engine: Removing

-- Release the tension on the ribbed belt. Refer to RIBBED BELT FOR STARTER GENERATOR, REMOVING AND INSTALLING, 2.9L ENGINE .

-- Refer to RIBBED BELT FOR STARTER GENERATOR, REMOVING AND INSTALLING, 3.0L ENGINE .

Version I

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -2- and the tensioner -1-.

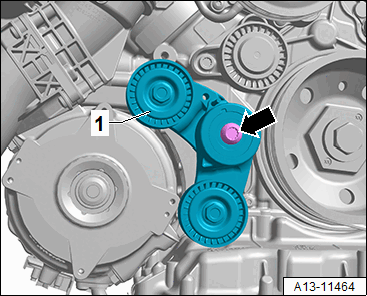

Version II

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -arrow- and the tensioner -1-.
