Pressure Regulating Valve, Removing And Installing: Installing
Install in the reverse order of removal, while noting the following:
-- If necessary, transfer the if necessary of the vent line installation position from the used part to the new part.

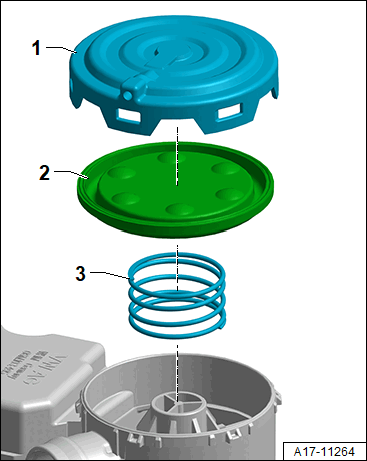

-- Assemble the individual parts as shown in the illustration above.
-- Spring -3-.
-- Position the membrane -2- correctly, the support points to the spring -3-.
-- Position the cover -1- in the right position.
- Pay attention that the spring on the membrane support is positioned correctly all around.
-- Align the cover to the oil separator to the markings on the vent opening.

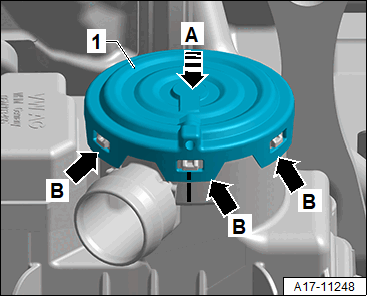

-- Press the cover of the oil separator -arrow A-, it has to lock in audibly.
- Pay attention that every hook -B arrows- catches on to the designated mounts in the cap of the oil separator cover all around. Leaks occur if not engaged.
