Front Right Plug On Cylinder Head, Removing And Installing: Removing

Depending on the equipment/version a coolant connection -1- or a plug -3- is installed at the front right of the cylinder head.

-- Remove the generator. Refer to GENERATOR, REMOVING AND INSTALLING .

-- Remove the bolt -4-, remove the plug -3-.

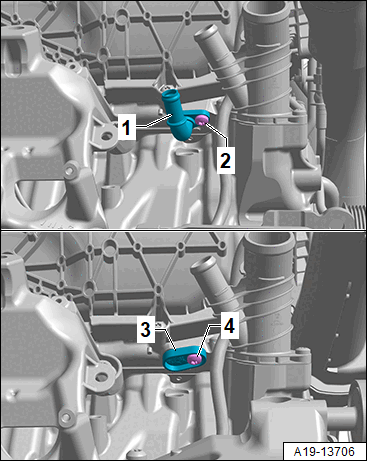

Fig 1: Coolant Connection Or Plug At Front Right Of Cylinder Head - Tightening Specifications

Courtesy of AUDI OF AMERICA, LLC
