Crankshaft Housing, Right Front Coolant Connection, Removing And Installing: Removing

-- Drain the coolant. Refer to COOLANT, DRAINING AND FILLING .

-- Remove the starter generator/generator bracket. Refer to SUB-ASSEMBLY BRACKET, REMOVING AND INSTALLING .

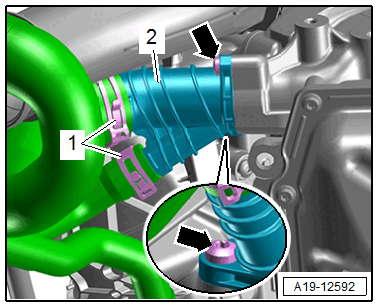

-- Loosen the hose clamps -1- and remove the coolant hoses.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows- and remove the coolant connection -2-.
