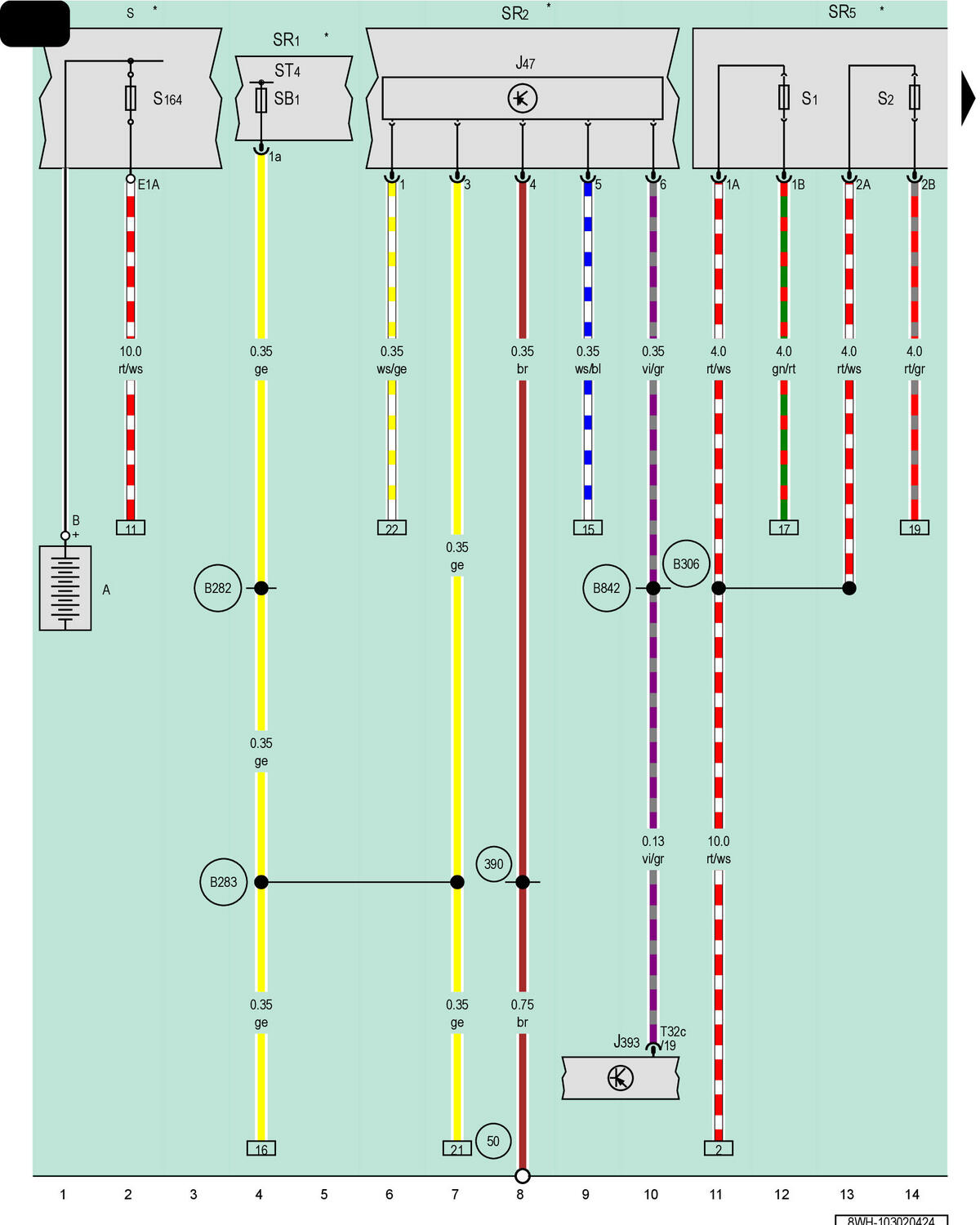

Relay And Fuse Panel 1, Relay And Fuse Panel 5

Courtesy of AUDI OF AMERICA, LLC

A

Battery

J47

Windshield Defogger Relay

J393

Comfort System Central Control Module

S

Fuses (On Fuse Panel), On the Battery Fuse Panel

S1

Fuse 1 (On Fuse Panel)

SR1

Relay and Fuse Panel 1

SB1

Fuse 1 (On Fuse Panel B)

SR2

Relay and Fuse Panel 2

S2

Fuse 2 (On Fuse Panel)

ST4

Fuse Panel 4, Black

SR5

Relay and Fuse Panel 5, In the Center Plenum Chamber

S164

Fuse 3 (Terminal 30) on Battery Fuse Panel

T32c

32-Pin Connector, Black

50

Ground Connection in Luggage Compartment, Left

390

Ground Connection 25 (in Main Wiring Harness)

B282

Positive Connection 6 (15a) (in Main Wiring Harness)

B283

Positive Connection 7 (15a) (in Main Wiring Harness)

B306

Positive Connection 10 (30) (in Main Wiring Harness)

B842

LIN Bus Connection 8 (in Main Wiring Harness)

*

Refer to Applicable Wiring Diagram for Fuse Positions
