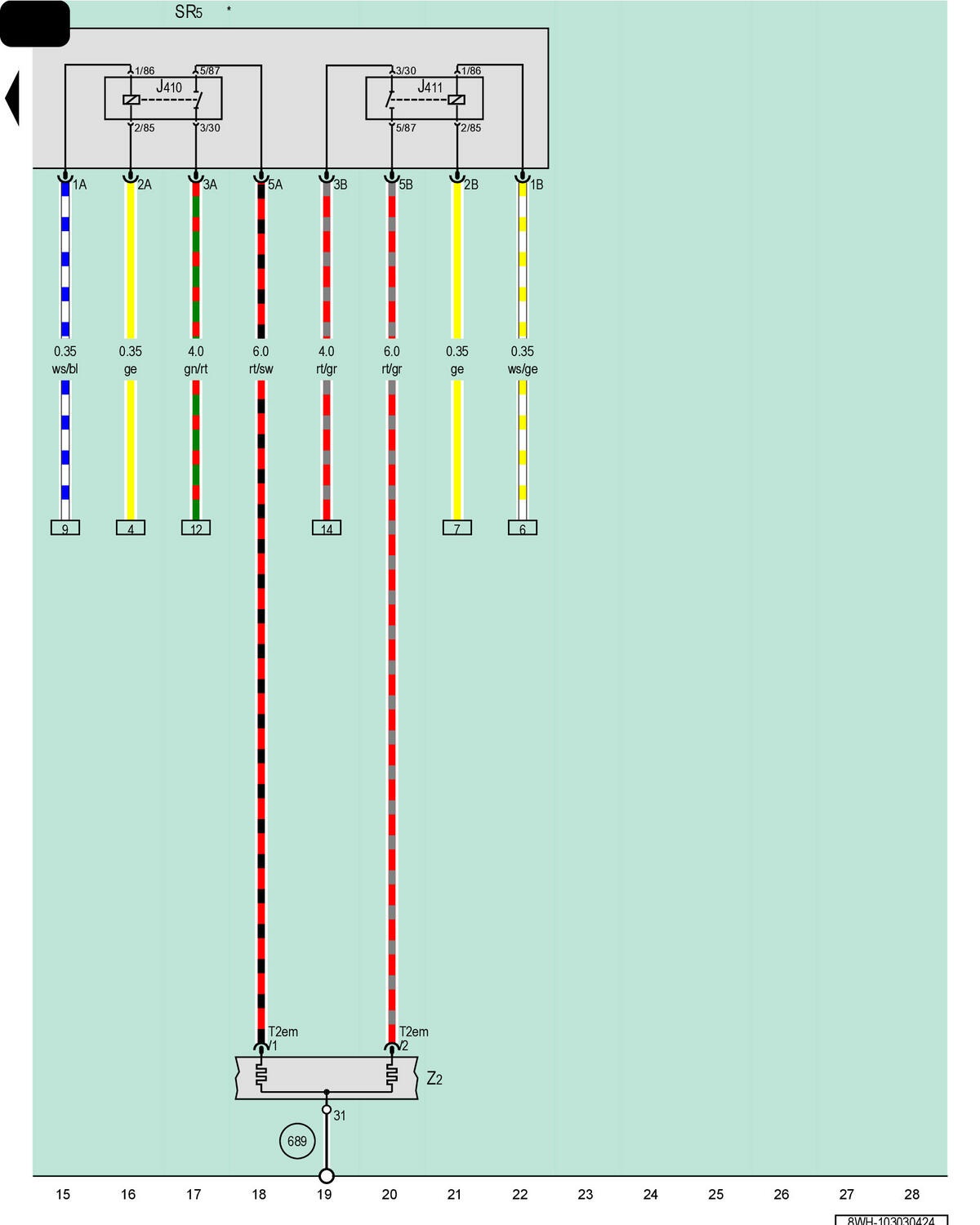

Left Windshield Defogger Relay, Right Windshield Defogger, Relay And Fuse Panel 5, Windshield Defogger

Courtesy of AUDI OF AMERICA, LLC

J410

Left Windshield Defogger Relay, Brown

J411

Right Windshield Defogger, Brown

SR5

Relay and Fuse Panel 5, In the Center Plenum Chamber

T2em

2-Pin Connector, Black

Z2

Windshield Defogger

689

Ground Connection on Roof, Center Front

*

Refer to Applicable Wiring Diagram for Fuse Positions
