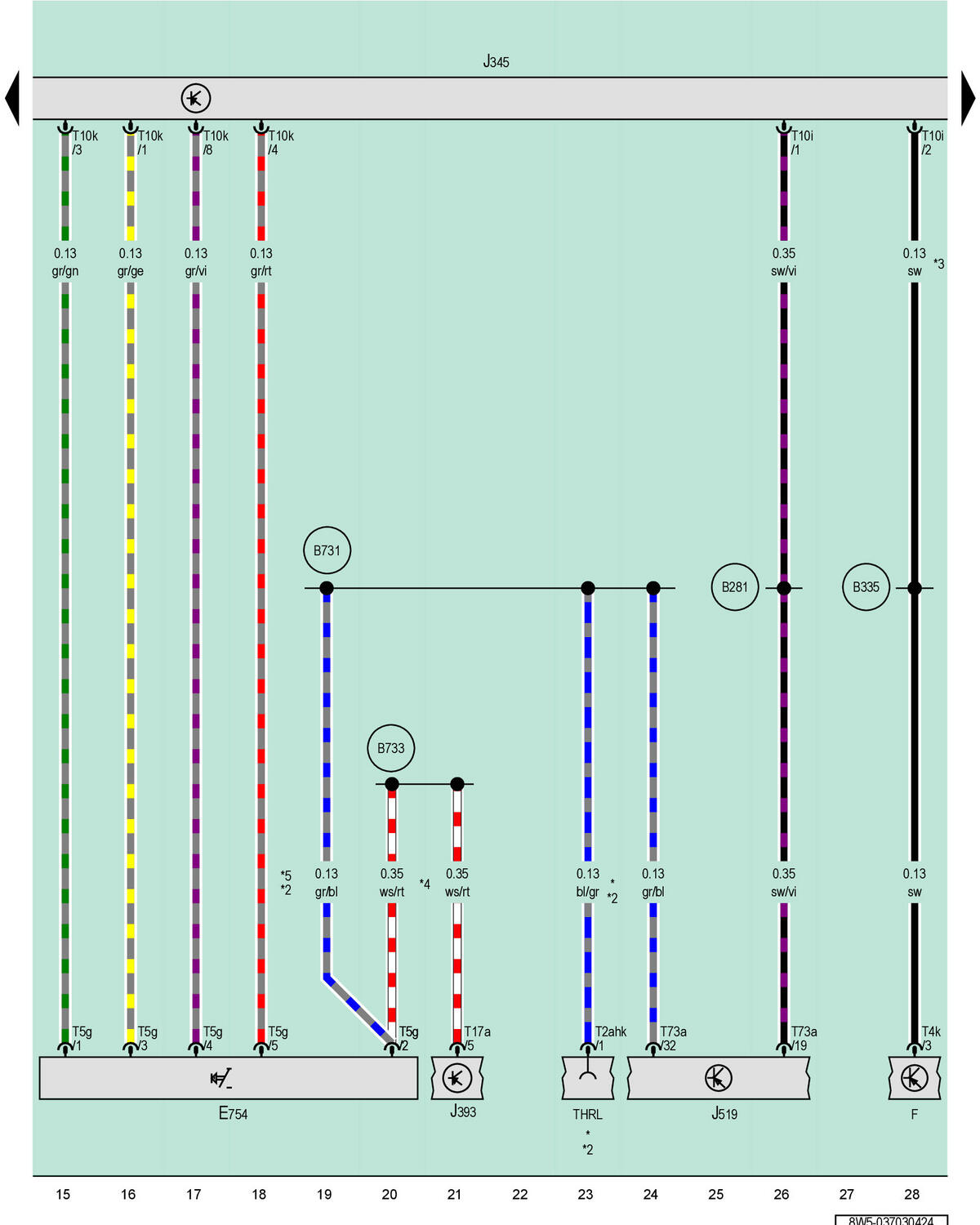

Trailer Hitch Release Button, Towing Recognition Control Module

Courtesy of AUDI OF AMERICA, LLC

E754

Trailer Hitch Release Button

F

Brake Lamp Switch

J345

Towing Recognition Control Module

J393

Comfort System Central Control Module

J519

Vehicle Electrical System Control Module

T2ahk

2-Pin Connector, Black

T4k

4-Pin Connector, Black

T5g

5-Pin Connector, Black

T10i

10-Pin Connector, Black

T10k

10-Pin Connector, Red

T17a

17-Pin Connector, Brown

T73a

73-Pin Connector, Black

THRL

Coupling Point in Luggage Compartment, Left

B281

Positive Connection 5 (15a) (in Main Wiring Harness)

B335

Connection 54 (in Main Wiring Harness) 1

B731

Connection 58s (in Main Wiring Harness) 1

B733

Connection 58s (in Main Wiring Harness) 3

*

For Vehicles with Trailer Setup

*2

Through May 2017

*3

Diameter Depends on Equipment

*4

From June 2017

*5

For Vehicles with Trailer Hitch
