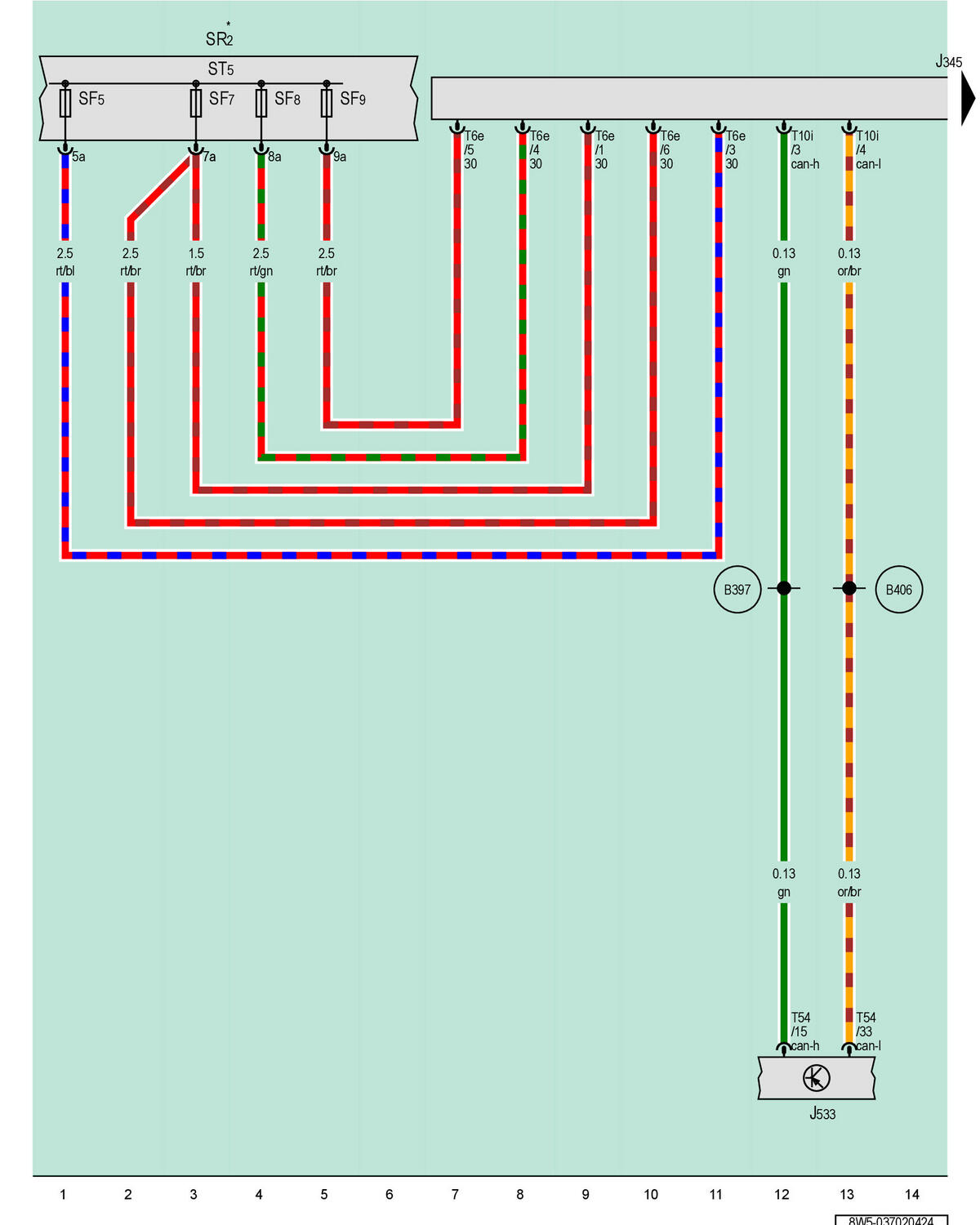

Towing Recognition Control Module

Courtesy of AUDI OF AMERICA, LLC

J345

J533

Data Bus on Board Diagnostic Interface

SR2

Relay and Fuse Panel 2

SF5

Fuse 5 (On Fuse Panel F)

ST5

Fuse Panel 5, Red

SF7

Fuse 7 (On Fuse Panel F)

SF8

Fuse 8 (On Fuse Panel F)

SF9

Fuse 9 (On Fuse Panel F)

T6e

6-Pin Connector, Black

T10i

10-Pin Connector, Black

T54

54-Pin Connector, Black

B397

Comfort System CAN Bus, High Connection 1 (in Main Wiring Harness)

B406

Comfort System CAN Bus, Low Connection 1 (in Main Wiring Harness)

Refer to Applicable Wiring Diagram for Fuse Positions
