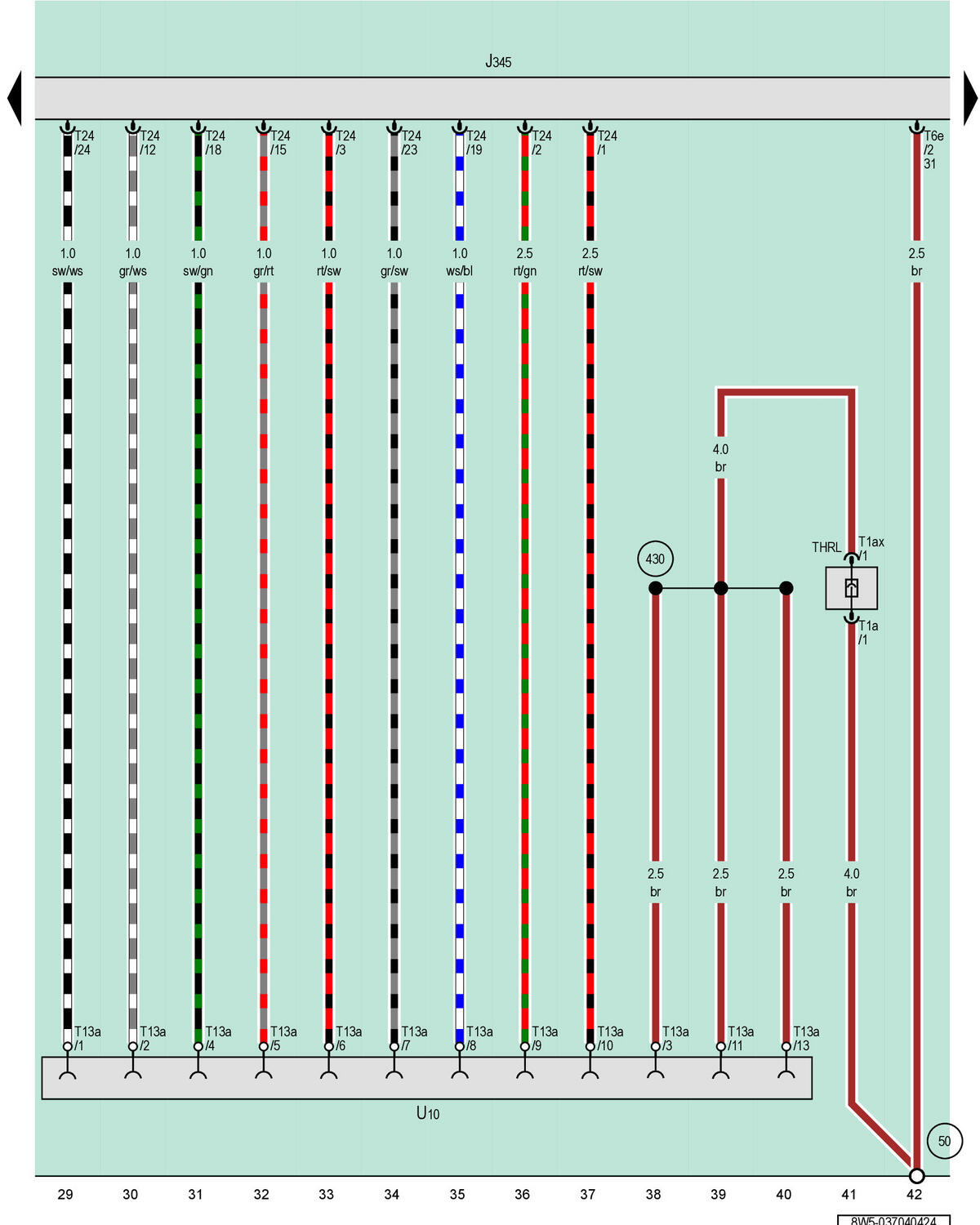

Towing Recognition Control Module, Trailer Socket

Courtesy of AUDI OF AMERICA, LLC

J345

Towing Recognition Control Module

T1a

1-Pin Connector, Black

T1ax

1-Pin Connector, Black

T6e

6-Pin Connector, Black

T13a

13-Pin Connector, Black

T24

24-Pin Connector, Black

THRL

Coupling Point in Luggage Compartment, Left, Behind the Right Luggage Compartment Side Trim, On the Comfort System Central Control Module

U10

Trailer Socket

50

Ground Connection in Luggage Compartment, Left

430

Ground Connection in Trailer Hitch Wiring Harness
