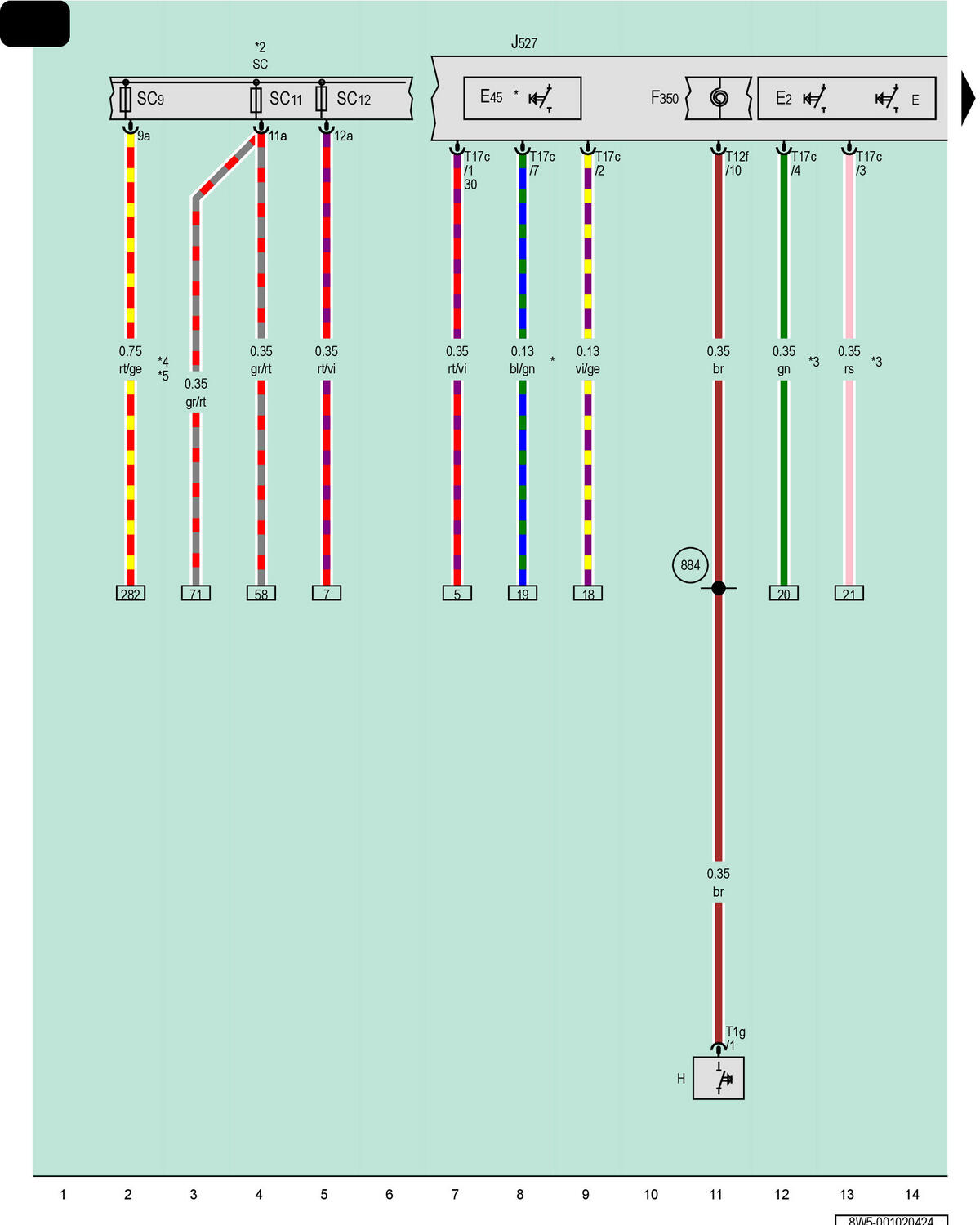

Windshield Wiper Switch, Turn Signal Switch, Cruise Control Switch, Signal Horn Activation, Steering Column Electronics Control Module, Fuse Panel C

Courtesy of AUDI OF AMERICA, LLC

E

Windshield Wiper Switch

E2

Turn Signal Switch

E45

Cruise Control Switch

F350

Spiral Spring

H

Signal Horn Activation

J527

Steering Column Electronics Control Module

SC

Fuse Panel C

SC9

Fuse 9 (On Fuse Panel C)

SC11

Fuse 11 (On Fuse Panel C)

SC12

Fuse 12 (On Fuse Panel C)

T1g

1-Pin Connector, Black

T12f

12-Pin Connector, Black

T17c

17-Pin Connector, Yellow

884

Ground Connection 1 (in Steering Wheel Wiring Harness)

*

For Vehicles with Cruise Control System

*2

Refer to Applicable Wiring Diagram for Fuse Positions

*3

Data Bus Wire (Flexray Bus)

*4

Through June 2019

*5

Refer to Applicable Wiring Diagram for Instrument Cluster
