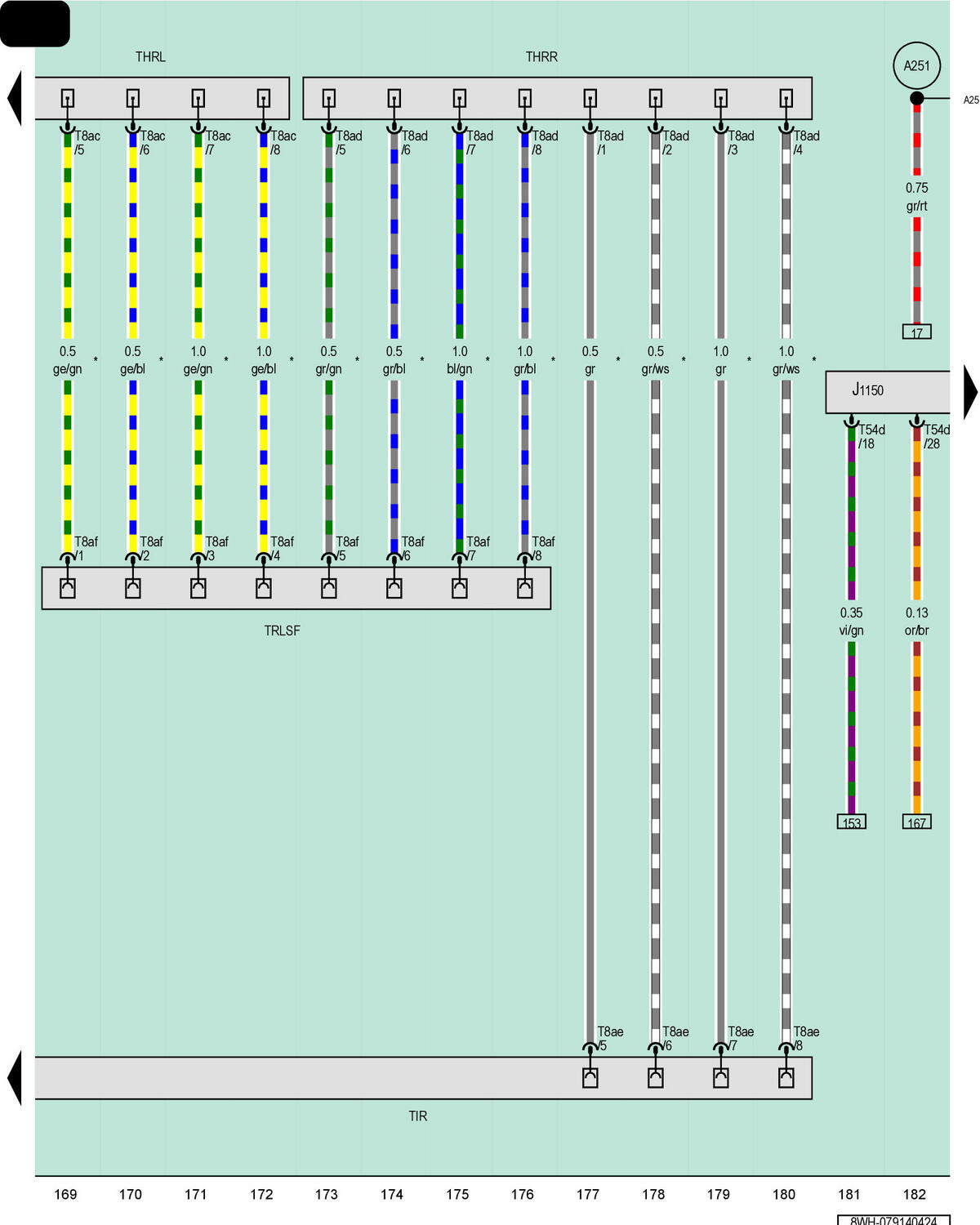

Special Purpose Vehicle Resource Assistant, Coupling Point In Interior, Right, Special Purpose Vehicle Spare Line Coupling Point
J1150
Special Purpose Vehicle Resource Assistant
T8ac
8-Pin Connector, Black
T8ad
8-Pin Connector, Black
T8ae
8-Pin Connector, Black
T8af
8-Pin Connector, Black
T54d
54-Pin Connector, Black
THRL
Coupling Point in Luggage Compartment, Left
THRR
Coupling Point in Luggage Compartment, Right
TIR
Coupling Point in Interior, Right
TRLSF
Special Purpose Vehicle Spare Line Coupling Point
A251
Positive Connection 2 (58) (in Special Purpose Vehicle Wiring Harness)
*
Rear Spare Line
