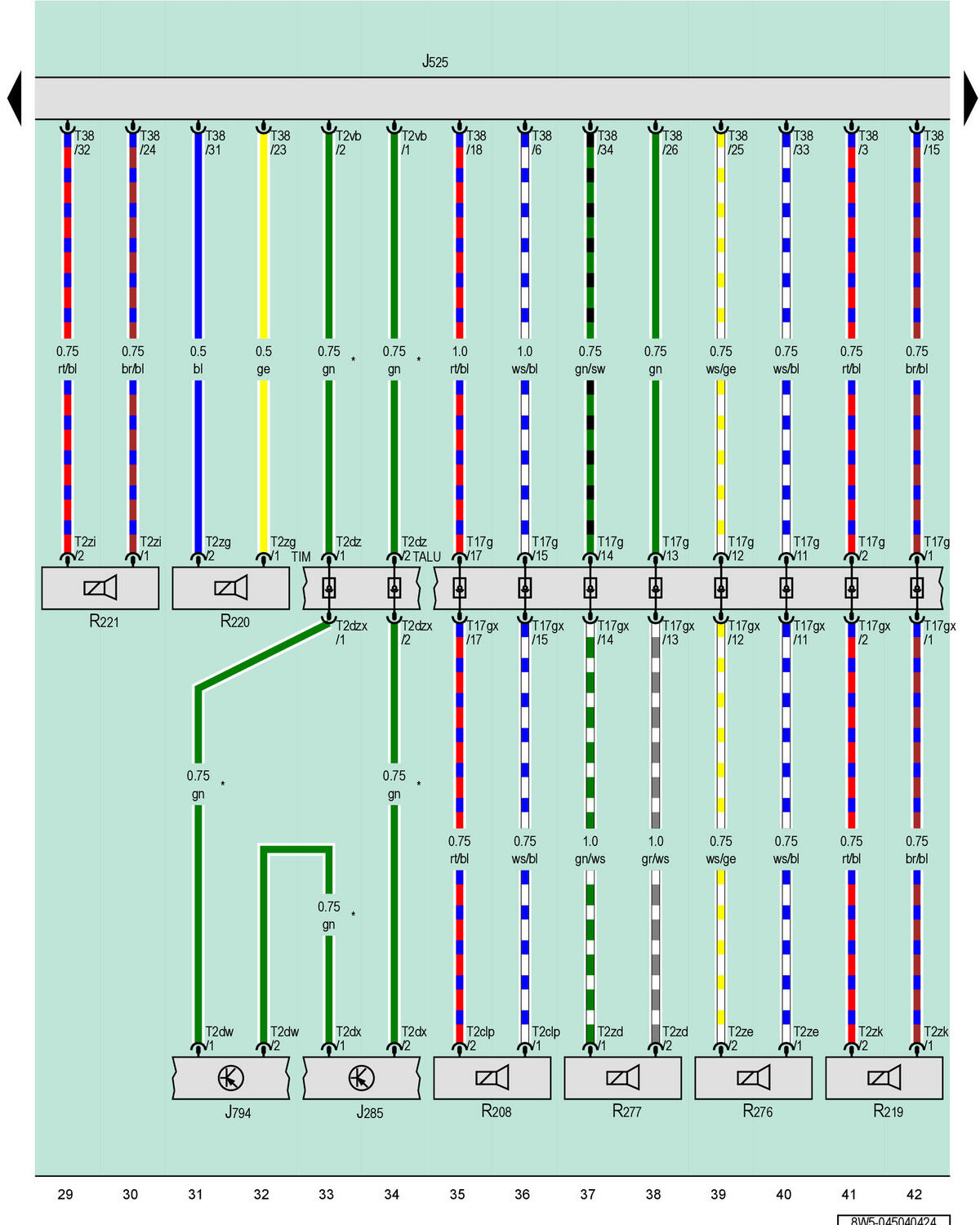

Instrument Cluster Control Module, Digital Sound System Control Module, Information Electronics Control Module 1, Center Speaker, Center Speaker 2, Left Front Treble Speaker 2, Right Front Treble Speaker 2, Left Front Midrange Speaker 2, Right Front Midrange Speaker 2

Courtesy of AUDI OF AMERICA, LLC

J285

Instrument Cluster Control Module

J525

Digital Sound System Control Module

J794

Information Electronics Control Module 1

R208

Center Speaker

R219

Center Speaker 2

R220

Left Front Treble Speaker 2

R221

Right Front Treble Speaker 2

R276

Left Front Midrange Speaker 2

R277

Right Front Midrange Speaker 2

T2clp

2-Pin Connector, Black

T2dw

2-Pin Connector, Black

T2dx

2-Pin Connector, Black

T2dz

2-Pin Connector, Black

T2dzx

2-Pin Connector, Black

T2vb

2-Pin Connector, Black

T2zd

2-Pin Connector, Black

T2ze

2-Pin Connector, Black

T2zg

2-Pin Connector, Black

T2zi

2-Pin Connector, Black

T2zk

2-Pin Connector, Black

T17g

17-Pin Connector, Blue

T17gx

17-Pin Connector, Blue

T38

38-Pin Connector, Black

TALU

Coupling Point on Left A-Pillar, Bottom

TIM

Coupling Point in Interior, Center

*

Fiber Optic Cable
