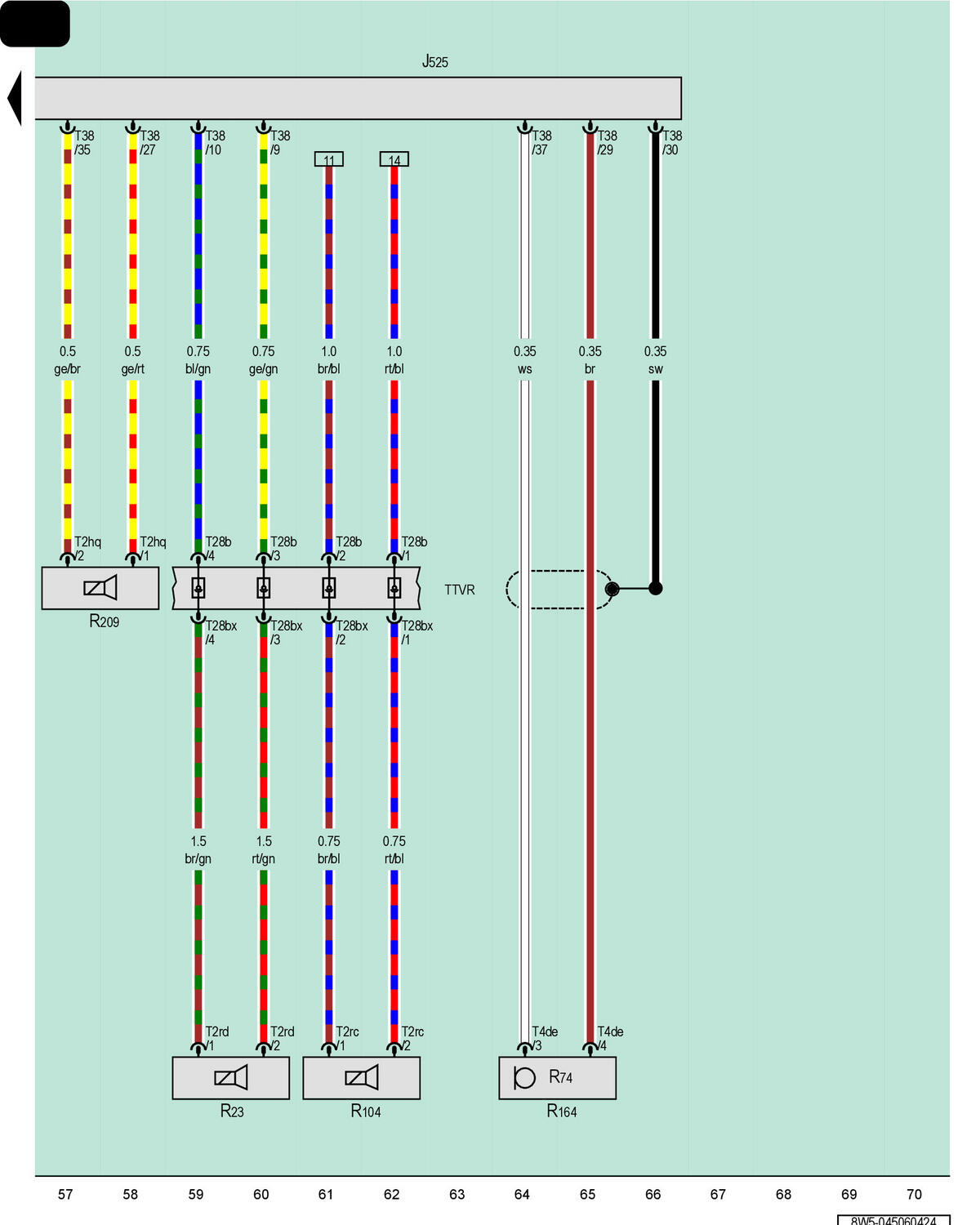

Digital Sound System Control Module, Right Front Bass Speaker, Right Front Midrange Speaker, Microphone Unit In Front Roof Module, Left Effects Speaker

Courtesy of AUDI OF AMERICA, LLC

J525

Digital Sound System Control Module

R23

Right Front Bass Speaker

R74

Interior Microphone

R104

Right Front Midrange Speaker

R164

Microphone Unit in Front Roof Module

R209

Left Effects Speaker

T2hq

2-Pin Connector, Black

T2rc

2-Pin Connector, Black

T2rd

2-Pin Connector, Black

T4de

4-Pin Connector, Black

T28b

28-Pin Connector, Black

T28bx

28-Pin Connector, Black

T38

38-Pin Connector, Black

TTVR

Right Front Door Coupling Point
