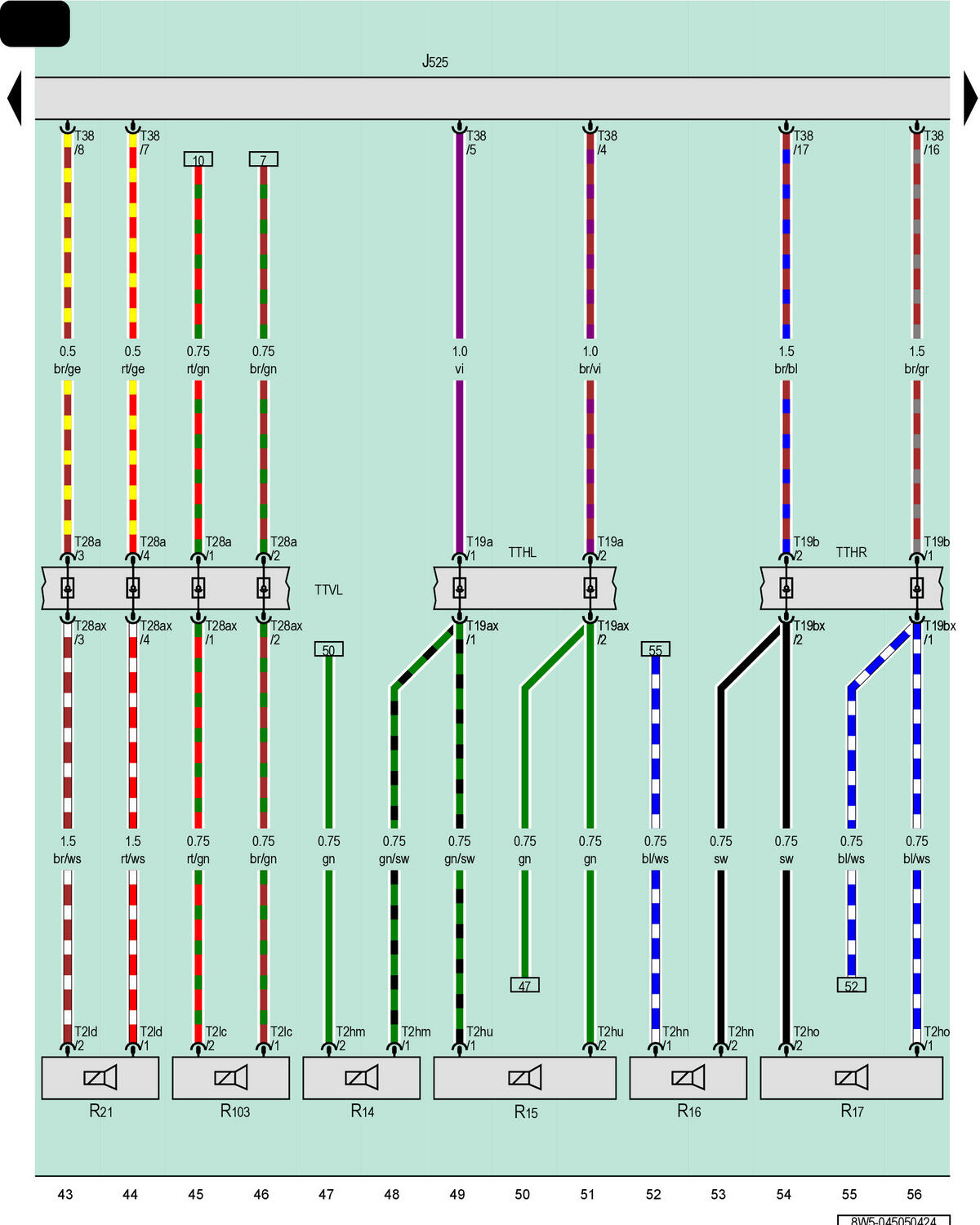

Digital Sound System Control Module, Left Rear Treble Speaker, Right Rear Treble Speaker, Left Front Bass Speaker, Left Front Midrange Speaker

Courtesy of AUDI OF AMERICA, LLC

J525

Digital Sound System Control Module

R14

Left Rear Treble Speaker

R15

Left Rear Bass Speaker

R16

Right Rear Treble Speaker

R17

Right Rear Bass Speaker

R21

Left Front Bass Speaker

R103

Left Front Midrange Speaker

T2hm

2-Pin Connector, Black

T2hn

2-Pin Connector, Black

T2ho

2-Pin Connector, Black

T2hu

2-Pin Connector, Black

T2lc

2-Pin Connector, Black

T2ld

2-Pin Connector, Black

T19a

19-Pin Connector, Black

T19ax

19-Pin Connector, Black

T19b

19-Pin Connector, Black

T19bx

19-Pin Connector, Black

T28a

28-Pin Connector, Black

T28ax

28-Pin Connector, Black

T38

38-Pin Connector, Black

TTHL

Left Rear Door Coupling Point

TTHR

Right Rear Door Coupling Point

TTVL

Left Front Door Coupling Point
