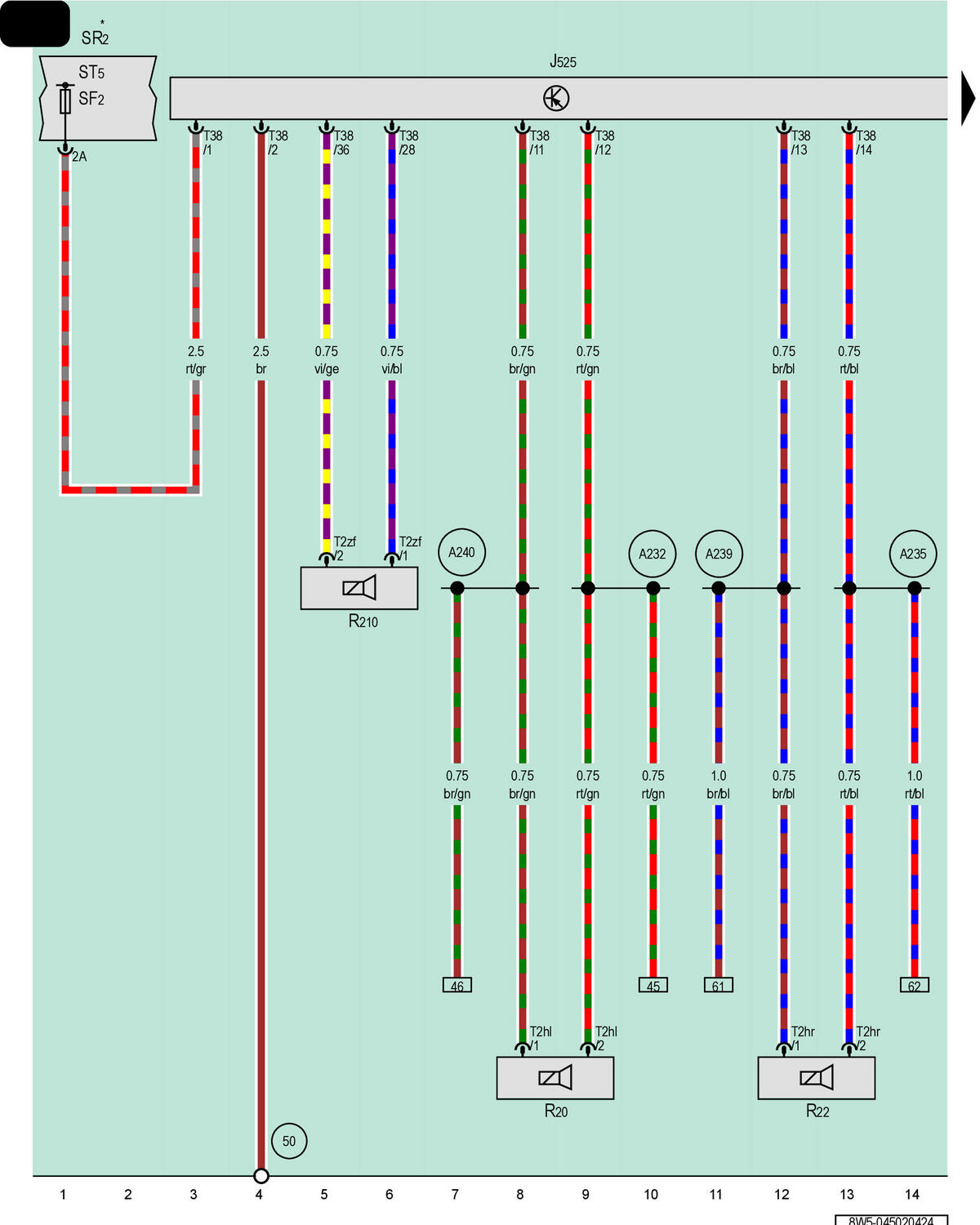

Digital Sound System Control Module, Left Front Treble Speaker, Right Front Treble Speaker, Right Effects Speaker

Courtesy of AUDI OF AMERICA, LLC

J525

Digital Sound System Control Module

R20

Left Front Treble Speaker

R22

Right Front Treble Speaker

R210

Right Effects Speaker

SR2

Relay and Fuse Panel 2

SF2

Fuse 2 (On Fuse Panel F)

ST5

Fuse Panel 5, Red

T2hl

2-Pin Connector, Blue

T2hr

2-Pin Connector, Blue

T2zf

2-Pin Connector, Black

T38

38-Pin Connector, Black

50

Ground Connection in Luggage Compartment, Left

A232

Rear Speaker Positive Connection 1 (in Left Speaker Wiring Harness)

A235

Rear Speaker Positive Connection 2 (in Right Speaker Wiring Harness)

A239

Rear Speaker Negative Connection 2 (in Right Speaker Wiring Harness)

A240

Rear Speaker Negative Connection 1 (in Left Speaker Wiring Harness)

*

Refer to Applicable Wiring Diagram for Fuse Positions
