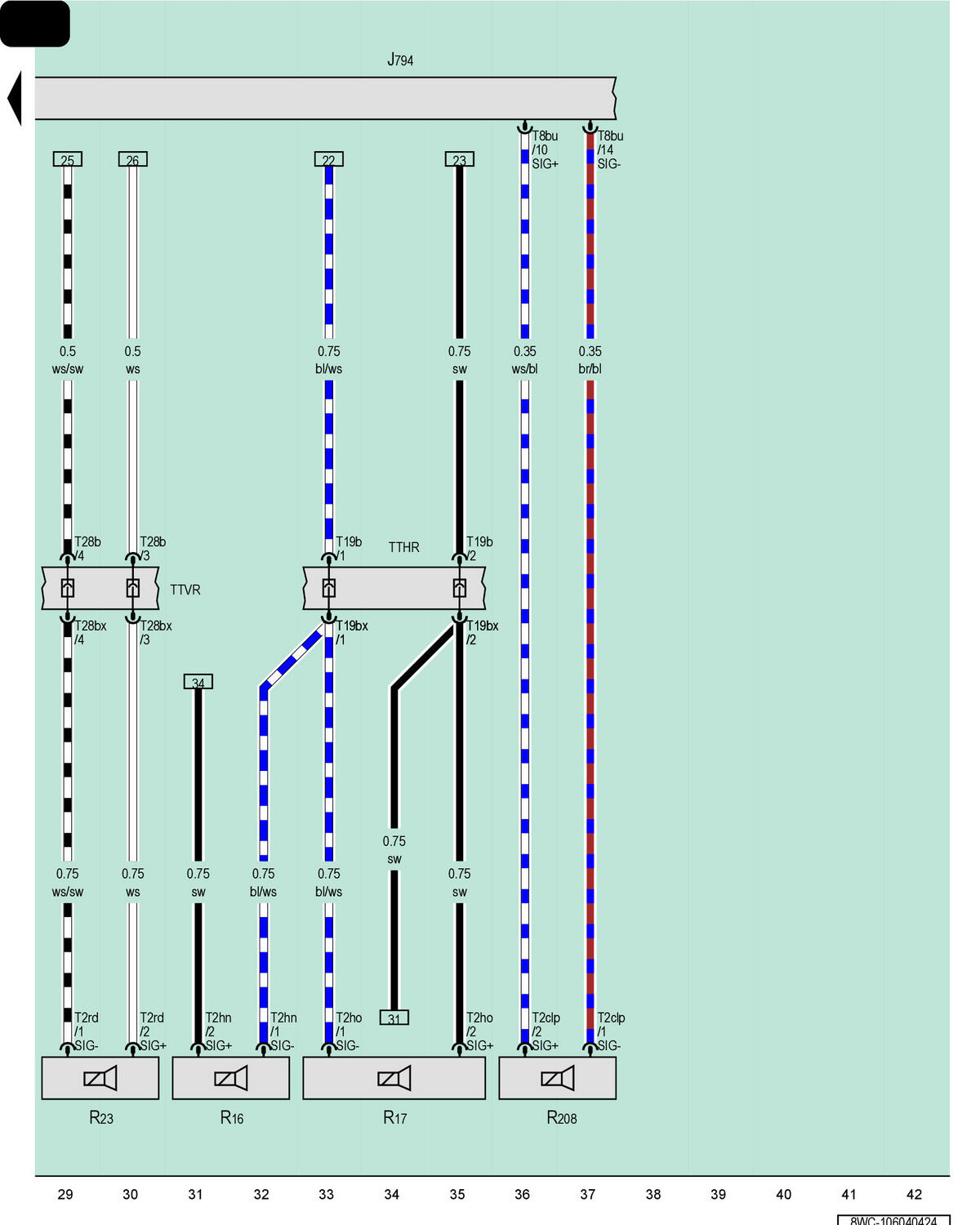

Right Rear Treble Speaker, Right Rear Bass Speaker, Right Front Bass Speaker, Center Speaker

Courtesy of AUDI OF AMERICA, LLC

J794

Information Electronics Control Module 1

R16

Right Rear Treble Speaker

R17

Right Rear Bass Speaker

R23

Right Front Bass Speaker

R208

Center Speaker

T2clp

2-Pin Connector, Black

T2hn

2-Pin Connector, Black

T2ho

2-Pin Connector, Black

T2rd

2-Pin Connector, Black

T8bu

8-Pin Connector, Black

T19b

19-Pin Connector, Black

T19bx

19-Pin Connector, Black

T28b

28-Pin Connector, Black

T28bx

28-Pin Connector, Black

TTHR

Right Rear Door Coupling Point

TTVR

Right Front Door Coupling Point
