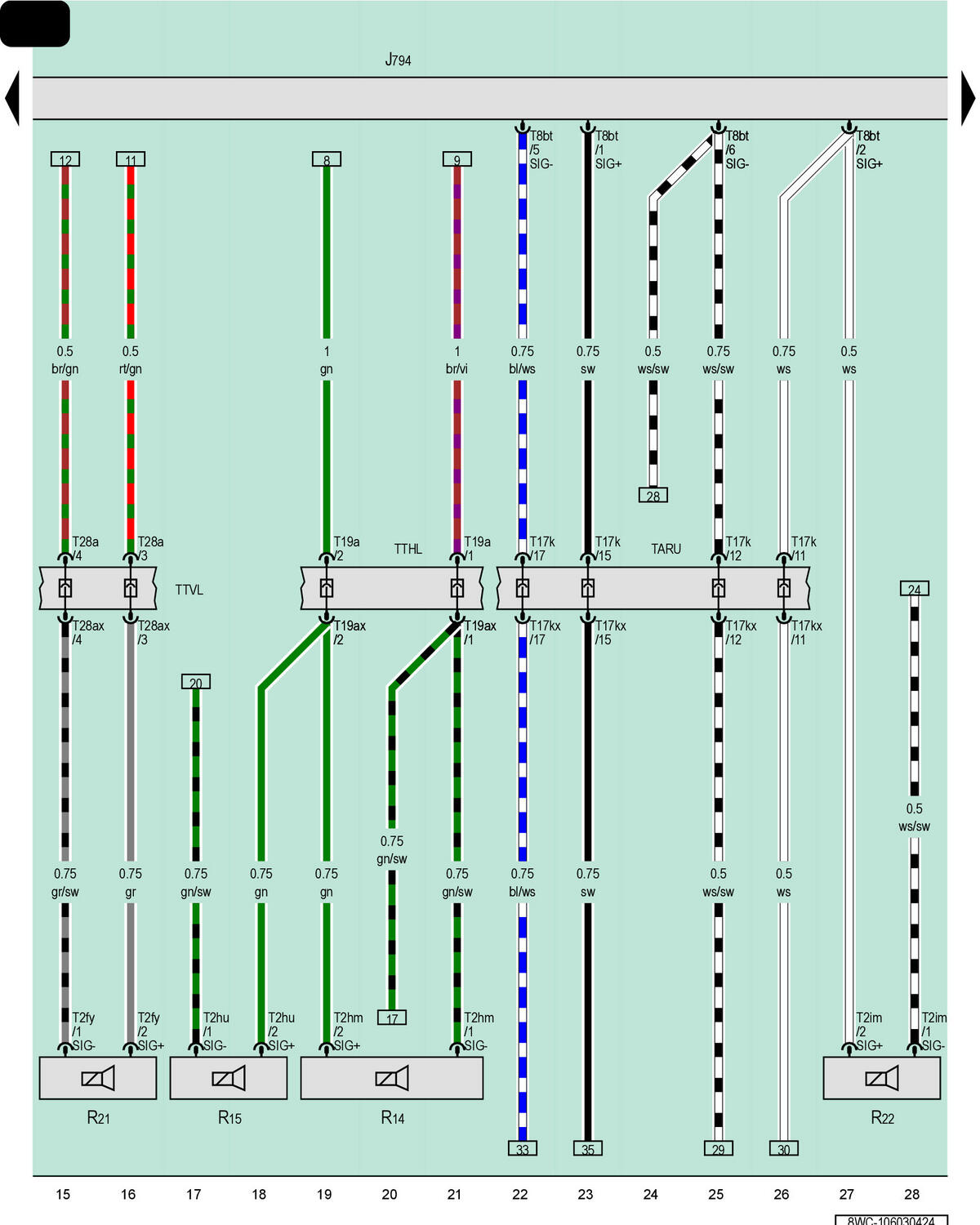

Left Rear Treble Speaker, Left Rear Bass Speaker, Left Front Bass Speaker, Right Front Treble Speaker

Courtesy of AUDI OF AMERICA, LLC

J794

Information Electronics Control Module 1

R14

Left Rear Treble Speaker

R15

Left Rear Bass Speaker

R21

Left Front Bass Speaker

R22

Right Front Treble Speaker

T2fy

2-Pin Connector, Yellow

T2hm

2-Pin Connector, Black

T2hu

2-Pin Connector, Black

T2im

2-Pin Connector, Black

T8bt

8-Pin Connector, Brown

T17k

17-Pin Connector, Black

T17kx

17-Pin Connector, Black

T19a

19-Pin Connector, Black

T19ax

19-Pin Connector, Black

T28a

28-Pin Connector, Black

T28ax

28-Pin Connector, Black

TARU

Coupling Point on Right A-Pillar, Bottom

TTHL

Left Rear Door Coupling Point

TTVL

Left Front Door Coupling Point
