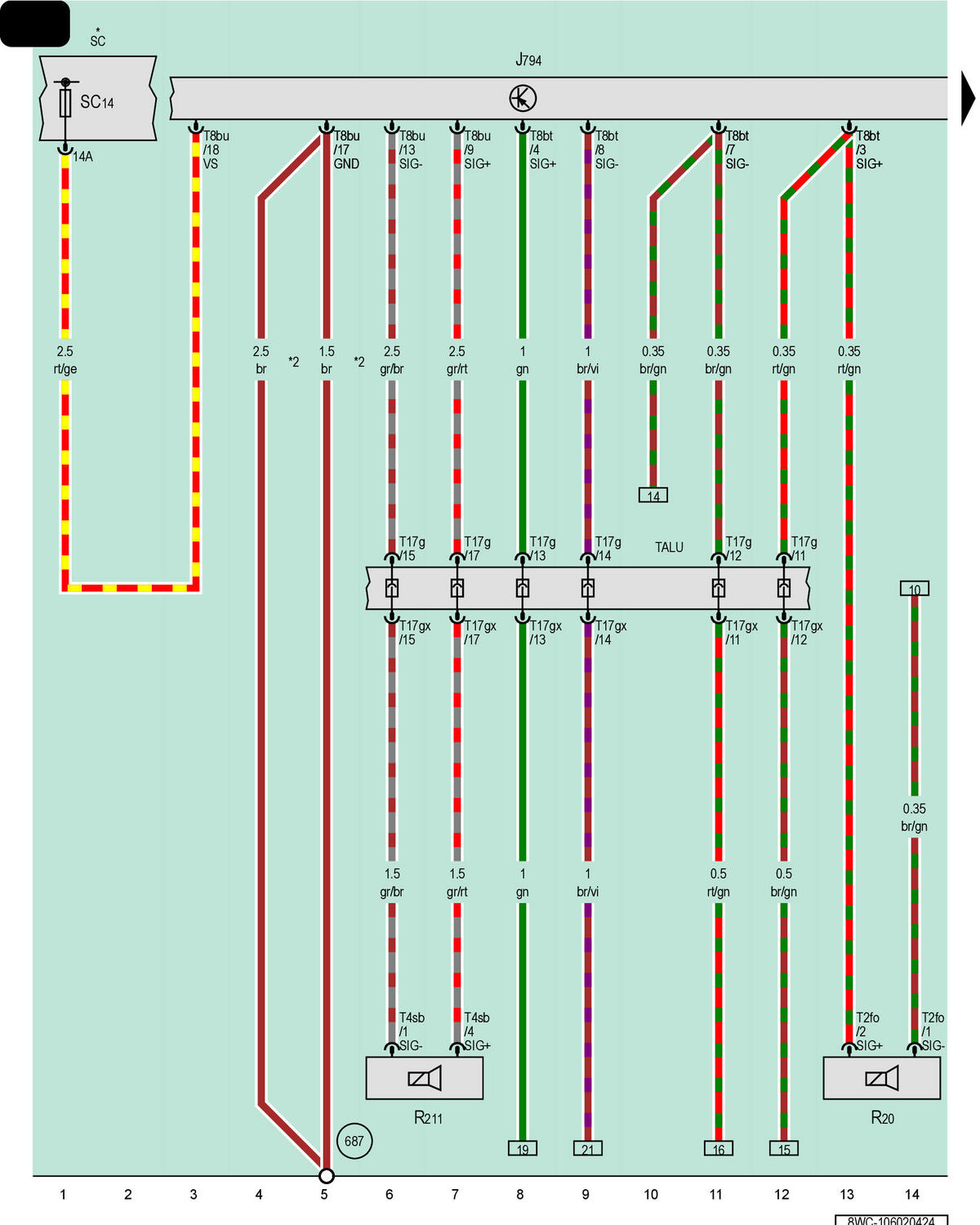

Left Front Treble Speaker, Subwoofer, Fuse Panel C

Courtesy of AUDI OF AMERICA, LLC

J794

Information Electronics Control Module 1

R20

Left Front Treble Speaker

R211

Subwoofer

SC

Fuse Panel C

SC14

Fuse 14 (On Fuse Panel C)

T2fo

2-Pin Connector, Black

T4sb

4-Pin Connector, Black

T8bt

8-Pin Connector, Brown

T8bu

8-Pin Connector, Black

T17g

17-Pin Connector, Blue

T17gx

17-Pin Connector, Blue

TALU

Coupling Point on Left A-Pillar, Bottom

687

Ground Connection 1 on Center Tunnel

*

Refer to Applicable Wiring Diagram for Fuse Positions

*2

Depending on Equipment
