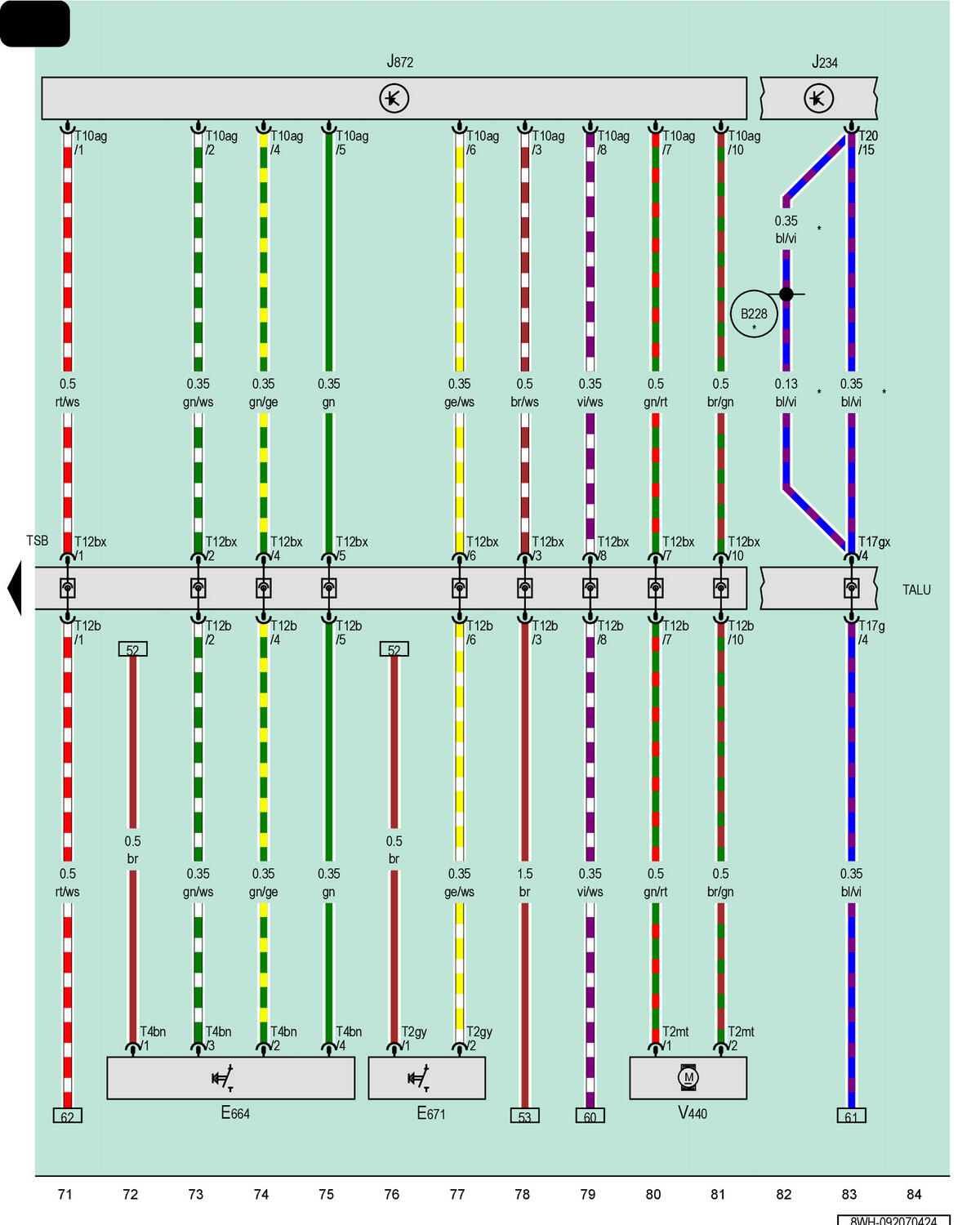

Front Passenger Seat Switch Module, Front Passenger Multi-Contour Seat Control Module

Courtesy of AUDI OF AMERICA, LLC

E664

Front Passenger Seat Switch Module

E671

Front Passenger Massage Function Button

J234

Airbag Control Module

J872

Front Passenger Multi-Contour Seat Control Module

T2gy

2-Pin Connector, Black

T2mt

2-Pin Connector, Black

T4bn

4-Pin Connector, Brown

T10ag

10-Pin Connector, Black

T12b

12-Pin Connector, Black

T12bx

12-Pin Connector, Black

T17g

17-Pin Connector, Blue

T17gx

17-Pin Connector, Blue

T20

20-Pin Connector, Yellow

TALU

Coupling Point on Left A-Pillar, Bottom

TSB

Front Passenger Seat Backrest Coupling Point

V440

Front Passenger Multi-Contour Seat Compressor

B228

Crash Signal Connection (in Interior Wiring Harness)

*

Depending on Equipment
