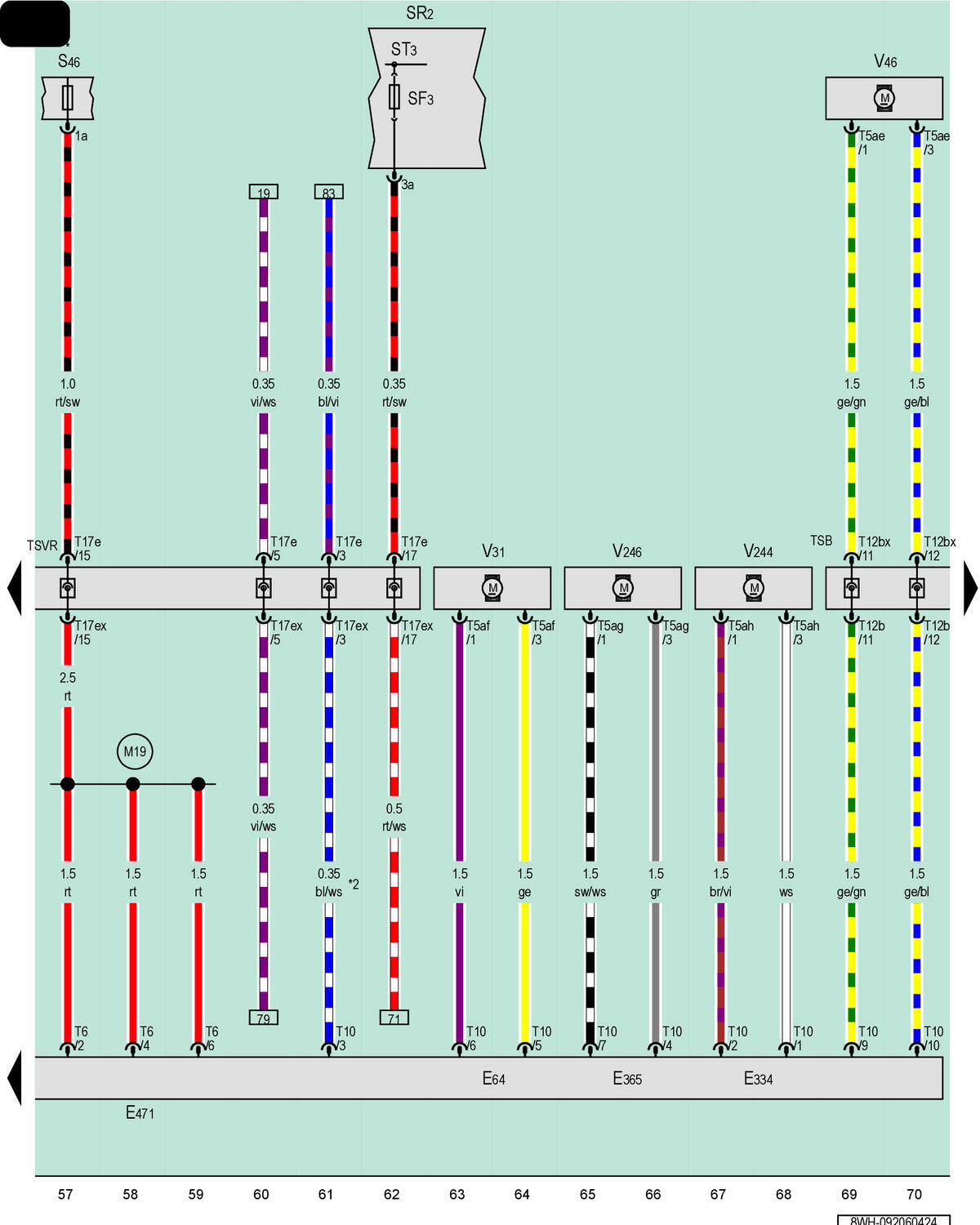

Front Passenger Seat Adjustment Control Head, Front Passenger Seat Forward/Back Adjustment Motor, Front Passenger Backrest Adjustment Motor, Front Passenger Seat Angle Adjustment Motor, Front Passenger Seat Height Adjustment Motor
E64
Front Passenger Seat Forward/Back Adjustment Switch
E334
Front Passenger Seat Angle Adjustment Button
E365
Front Passenger Seat Height Adjustment Switch
E471
Front Passenger Seat Adjustment Control Head
SR2
Relay and Fuse Panel 2
SF3
Fuse 3 (On Fuse Panel F)
ST3
Fuse Panel 3, Brown
S46
Front Passenger Power Seat Adjustment Circuit Breaker 1
T5ae
5-Pin Connector, Brown
T5af
5-Pin Connector, Brown
T5ag
5-Pin Connector, Brown
T5ah
5-Pin Connector, Brown
T6
6-Pin Connector, Black
T10
10-Pin Connector, Black
T12b
12-Pin Connector, Black
T12bx
12-Pin Connector, Black
T17e
17-Pin Connector, Red
T17ex
17-Pin Connector, Red
TSB
Front Passenger Seat Backrest Coupling Point
TSVR
Right Front Seat Coupling Station
V31
Front Passenger Seat Forward/Back Adjustment Motor
V46
Front Passenger Backrest Adjustment Motor
V244
Front Passenger Seat Angle Adjustment Motor
V246
Front Passenger Seat Height Adjustment Motor
M19
Connection 2 (in Front Passenger Seat Adjustment Wiring Harness)
*
Refer to Applicable Wiring Diagram for Fuse Positions
*2
From November 2016
