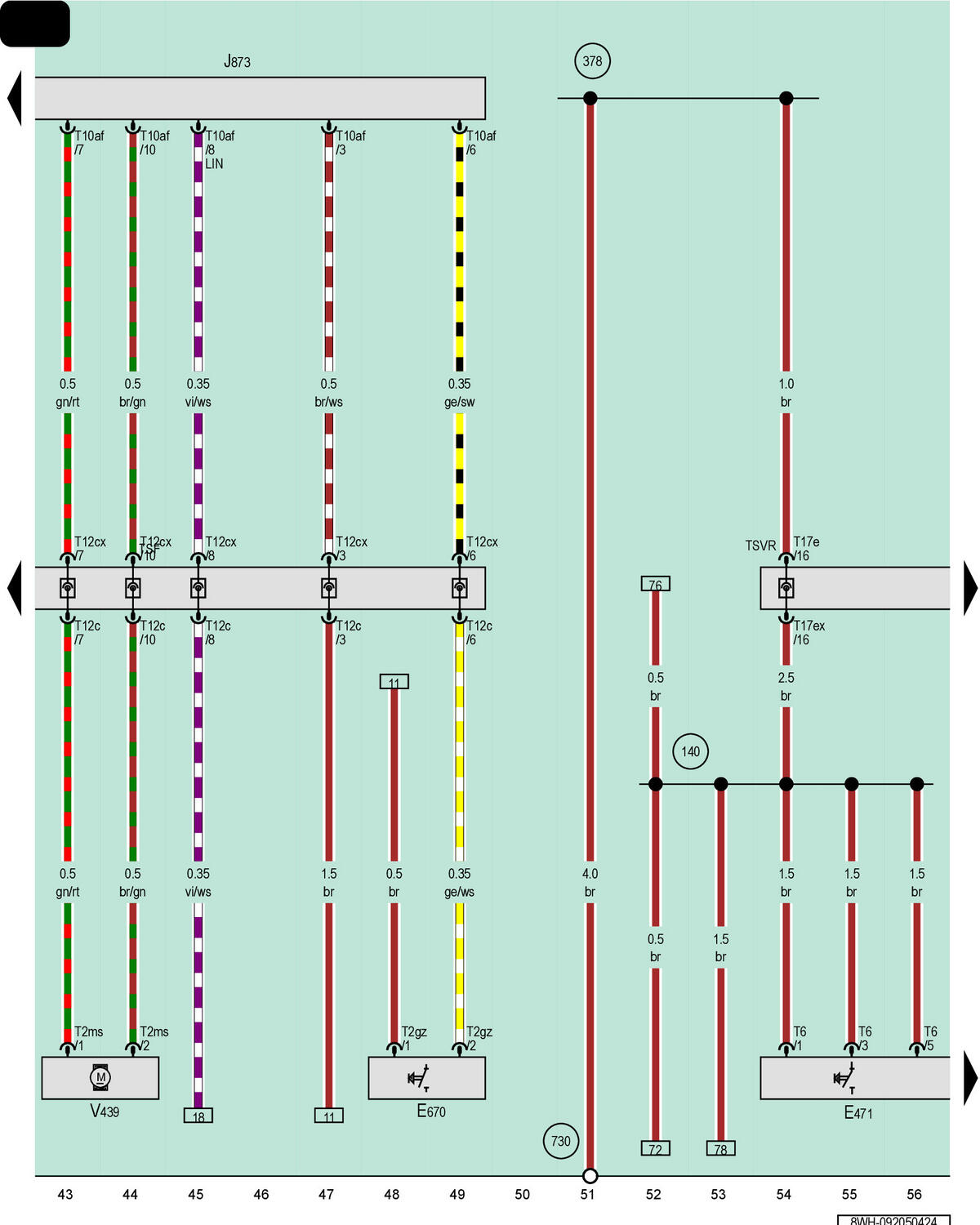

Front Passenger Seat Adjustment Control Head, Driver Side Massage Function Button, Driver Multi-Contour Seat Control Module, Driver Multi-Contour Seat Compressor
E471
Front Passenger Seat Adjustment Control Head
E670
Driver Side Massage Function Button
J873
Driver Multi-Contour Seat Control Module
T2gz
2-Pin Connector, Black
T2ms
2-Pin Connector, Black
T6
6-Pin Connector, Black
T10af
10-Pin Connector, Black
T12c
12-Pin Connector, Black
T12cx
12-Pin Connector, Black
T17e
17-Pin Connector, Red
T17ex
17-Pin Connector, Red
TSF
Driver Seat Backrest Coupling Point
TSVR
Right Front Seat Coupling Station
V439
Driver Multi-Contour Seat Compressor
140
Ground Connection 2 (in Seat Adjustment Wiring Harness)
378
Ground Connection 13 (in Main Wiring Harness)
730
Ground Connection 1 on Right Rear Wheel Housing
