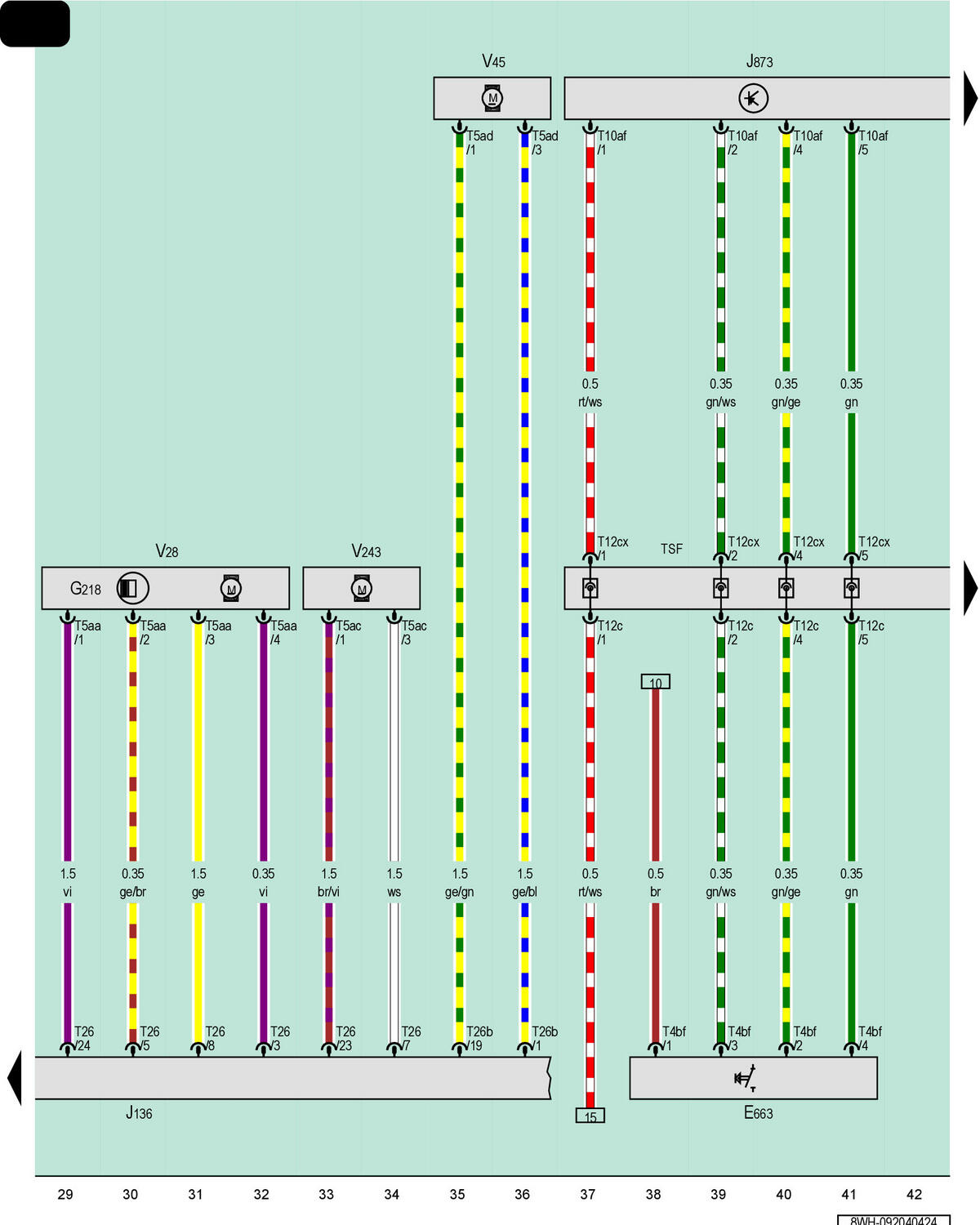

Driver Seat Switch Module, Memory Seat/Steering Column Adjustment Control Module, Driver Multi-Contour Seat Control Module, Driver Seat Forward/Back Adjustment Motor, Driver Backrest Adjustment Motor, Driver Seat Angle Adjustment Motor

Courtesy of AUDI OF AMERICA, LLC

E663

Driver Seat Switch Module

G218

Driver Seat Forward/Back Adjustment Sensor

J136

Memory Seat/Steering Column Adjustment Control Module

J873

Driver Multi-Contour Seat Control Module

T4bf

4-Pin Connector, Brown

T5aa

5-Pin Connector, Brown

T5ac

5-Pin Connector, Brown

T5ad

5-Pin Connector, Brown

T10af

10-Pin Connector, Black

T12c

12-Pin Connector, Black

T12cx

12-Pin Connector, Black

T26

26-Pin Connector, White

T26b

26-Pin Connector, Blue

TSF

Driver Seat Backrest Coupling Point

V28

Driver Seat Forward/Back Adjustment Motor

V45

Driver Backrest Adjustment Motor

V243

Driver Seat Angle Adjustment Motor
