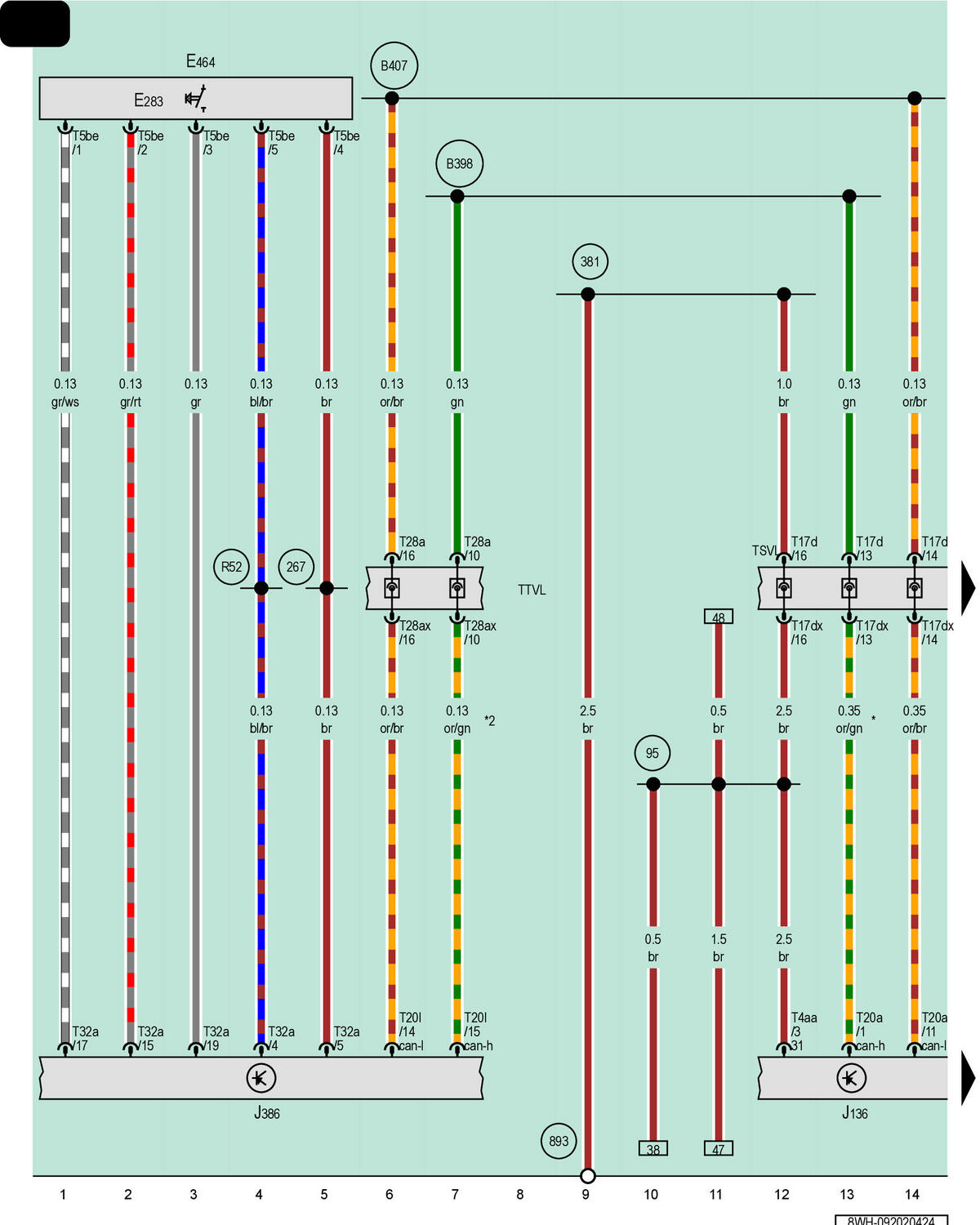

Driver Seat Memory Settings Control Head, Memory Seat/Steering Column Adjustment Control Module, Driver Door Control Module
E283
Driver Seat Memory Button
E464
Driver Seat Memory Settings Control Head
J136
Memory Seat/Steering Column Adjustment Control Module
J386
Driver Door Control Module
T4aa
4-Pin Connector, Black
T5be
5-Pin Connector, Black
T17d
17-Pin Connector, Red
T17dx
17-Pin Connector, Red
T20a
20-Pin Connector, Black
T20l
20-Pin Connector, White
T28a
28-Pin Connector, Black
T28ax
28-Pin Connector, Black
T32a
32-Pin Connector, Blue
TSVL
Left Front Seat Coupling Station
TTVL
Left Front Door Coupling Point
95
Ground Connection 1 (in Seat Adjustment Wiring Harness)
267
Ground Connection 2 (in Driver Door Wiring Harness)
381
Ground Connection 16 (in Main Wiring Harness)
893
Ground Connection 2 on Left B-Pillar
B398
Comfort System CAN Bus, High Connection 2 (in Main Wiring Harness)
B407
Comfort System CAN Bus, Low Connection 2 (in Main Wiring Harness)
R52
Connection 58S (in Driver Door Wiring Harness)
*
Different Wire Color Possible
*2
The Color of the Wires Depends on Vehicle Equipment
