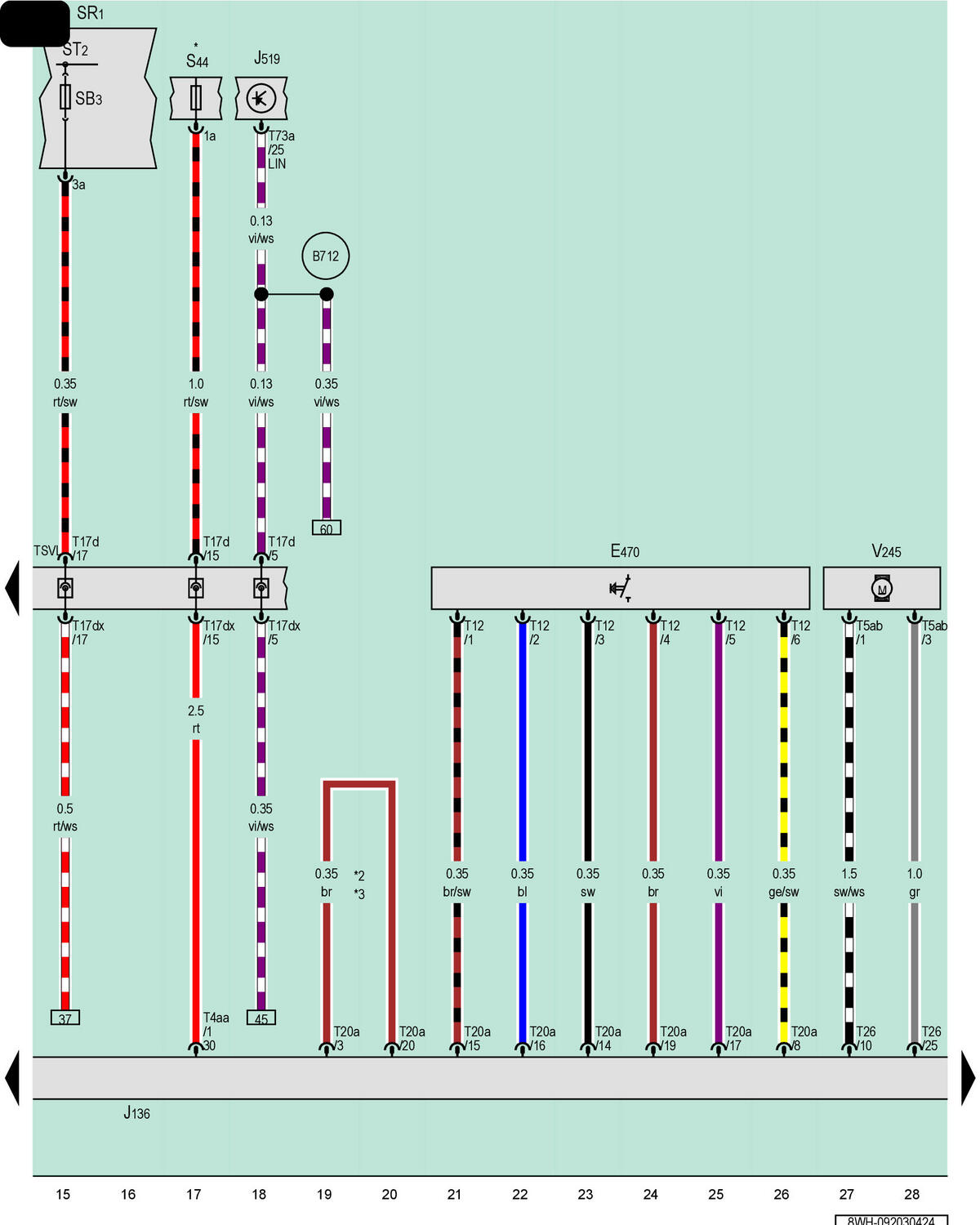

Driver Seat Adjustment Control Head, Memory Seat/Steering Column Adjustment Control Module, Driver Power Seat Adjustment Circuit Breaker 1, Driver Seat Height Adjustment Motor
E470
Driver Seat Adjustment Control Head
J136
Memory Seat/Steering Column Adjustment Control Module
J519
Vehicle Electrical System Control Module
SR1
Relay and Fuse Panel 1
ST2
Fuse Panel 2, Red
SB3
Fuse 3 (On Fuse Panel B)
S44
Driver Power Seat Adjustment Circuit Breaker 1
T4aa
4-Pin Connector, Black
T5ab
5-Pin Connector, Brown
T12
12-Pin Connector, Black
T17d
17-Pin Connector, Red
T17dx
17-Pin Connector, Red
T20a
20-Pin Connector, Black
T26
26-Pin Connector, White
T73a
73-Pin Connector, Black
TSVL
Left Front Seat Coupling Station
V245
Driver Seat Height Adjustment Motor
B712
LIN Bus Connection 7 (in Main Wiring Harness)
*
Refer to Applicable Wiring Diagram for Fuse Positions
*2
Coding Wire
*3
Depending on Equipment
