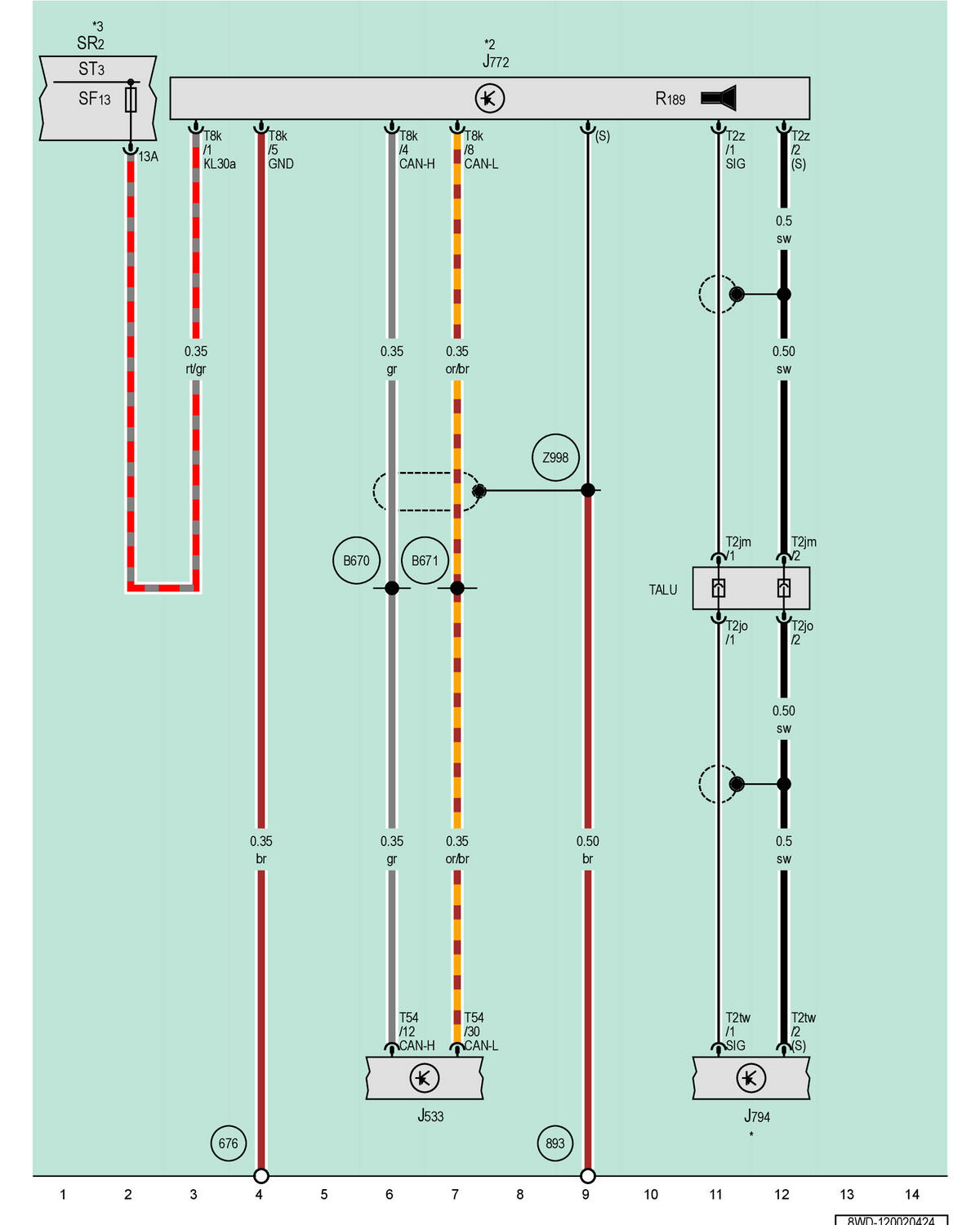

Rearview Camera System Control Module
J533
Data Bus on Board Diagnostic Interface
J772
Rearview Camera System Control Module
J794
Information Electronics Control Module 1
R189
Rearview Camera
SR2
Relay and Fuse Panel 2
ST3
Fuse Panel 3
SF13
Fuse 13 (On Fuse Panel F)
T2jm
2-Pin Connector, Blue
T2jo
2-Pin Connector, Blue
T2tw
2-Pin Connector, Green
T2z
2-Pin Connector, Gray
T8k
8-Pin Connector, Black
T54
54-Pin Connector, Black
TALU
Coupling Point on Left A-Pillar, Bottom
676
Ground Connection 2 in Luggage Compartment, Left
893
Ground Connection 2 on Left B-Pillar
B670
CAN Bus Extended High Connection 3 (in Main Wiring Harness)
B671
CAN Bus Extended Low Connection 3 (in Main Wiring Harness)
Z998
Cable Shield
*
Refer to Applicable MMI (Information Electronics) Wiring Diagram
*2
Pre-Wired Component
*3
Refer to Applicable Wiring Diagram for Fuse Positions
